Lithium Polymer Battery Pack

Lithium Polymer Battery Pack 802040 3.7V 7.4V 650mAh 2.4wh Power Li-Polymer Batteries For Led Lamp

All Category

RC Accessories

Mrs. Alice

alice@szresky.com

0086 13530058480

0086 13530058480

Contact Now

Lithium Polymer Battery Pack 802040 3.7V 7.4V 650mAh 2.4wh Power Li-Polymer Batteries For Led Lamp

Brand Name:	RESKY
Model Number:	LP802040
MOQ:	100pcs
Price:	Negotiable
Packaging Details:	Paper box
Payment Terms:	Western Union,T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE, RoHS, MSDS, Un38.3

Nominal Capacity:

650mAh

Charging Current:

Continuous Discharging Current:

Max Discharging Current:

Weight:

Cycle Life:

500cycles

Warranty:

12months

Shipping:

UPS, DHL, FedEx, TNT, By Air, By Sea, Special Line

Certification:

CE, ROHS, IEC62133, MSDS, UN38.3 Available

Specification:

8*20*40mm

Supply Ability:

50000pcs/day

Highlight:

Lithium Polymer Battery Pack 802040

3.7V Li-Polymer Battery for LED Lamp

7.4V 650mAh Lithium Battery Pack

Product Description

Lithium Polymer Battery Pack 802040 3.7V 7.4V 650mAh 2.4wh Power Li-Polymer Batteries For Led Lamp

Main parameters:

Product model: LP802040
Nominal capacity: 650mAh
Product size: 8.0x20x40mm
Rated voltage: 3.7V
Charging voltage: 4.2V
Charging temperature: 0 ° C~45 ° C
Discharge temperature: -20 ° C~+60 ° C
Storage temperature: -20 ° C~+35 ° C
Charging current: Standard charging: 0.5C, fast charging: 1.0C
Standard charging method: Charge to 4.25V at 0.5C CC (constant current),
Charge again with CV (constant voltage 4.2V) until the charging current is ≤ 0.05C
Maximum charging current: 1C
Maximum discharge current: 1C
Protection IC parameters: overcharge protection voltage 4.20V ± 0.05V
Over discharge protection voltage 2.7V ± 0.1V

Product features:

1. High security performance

2. Thin thickness, adjustable thickness

3. Lightweight

4. High energy density, compared to other types of lithium batteries, the same size capacity can be achieved

5. Low internal resistance and long cycle life

6. Flexible size available

7. Good discharge performance

Application areas:

Smart wearable devices: such as Bluetooth earphones, VR glasses, adult products

Portable electronic devices: voice recorder, portable power bank, game console

Medical beauty equipment: massager, beauty device

Smart home: LED electronic alarm clock, smartwatch

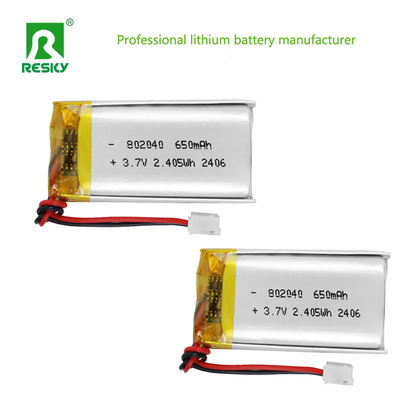

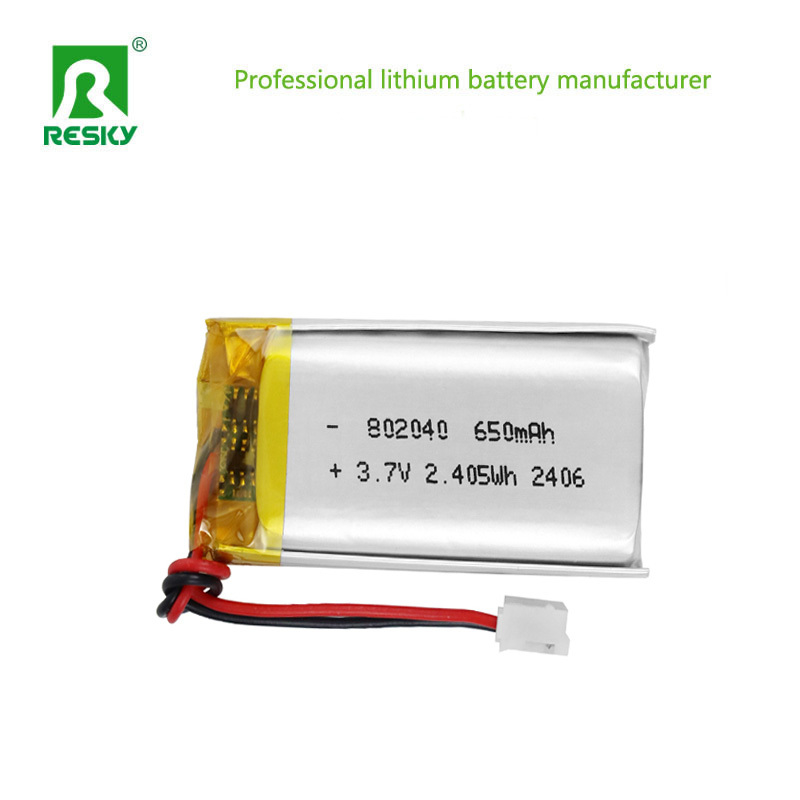

Product pictures:

Lithium Polymer Battery Pack 802040 3.7V 7.4V 650mAh 2.4wh Power Li-Polymer Batteries For Led Lamp 0
