Lithium Polymer Battery Pack 115570 3.7V 7.4V 11.1v 5000mAh 18.5wh For Portable Medical Device

Brand Name:	RESKY
Model Number:	LP115570
MOQ:	10pcs
Price:	Negotiable
Packaging Details:	Paper box
Payment Terms:	T/T,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE, RoHS, MSDS, Un38.3

Document:

Model NO.:

LP115570

Nominal Capacity:

5000mAh

Continuous Discharging Current:

Max Discharging Current:

Weight:

10PCS

Cycle Life:

500cycles

Specification:

11*55*70mm

HS Code:

8507600090

Supply Ability:

10000PCS/Day

Supply Ability:

50000pcs/day

Highlight:

Lithium Polymer Battery Pack for medical devices

3.7V 5000mAh Lithium Polymer Battery

7.4V portable medical device battery

Product Description

Lithium Polymer Battery Pack 115570 3.7V 7.4V 11.1v 5000mAh 18.5wh For Portable Medical Device

Product Attributes

Attribute	Value
Model NO.	LP115570
Nominal Capacity	5000mAh
Continuous Discharging Current	0.5c
Max Discharging Current	1c
Weight	65g
MOQ	10PCS
Cycle Life	500cycles
Specification	115570mm
HS Code	8507600090
Supply Ability	10000PCS/Day

Technical Specifications

NO.	Items	Specifications
1	Batteries	3.7v 5000mah lipo battery
2	Charge voltage	4.2V
3	Nominal voltage	3.7V
4	Nominal capacity	5000mAh 0.2C Discharge
5	Charge current	Standard Charging:0.5C Rapid charge:1.0C
6	Standard Charging method	0.5C CC(constant current)charge to 4.2V, then CV(constant voltage 4.2V)charge till charge current decline to ≤0.05C
7	Charging time	Standard Charging:2.75hours(Ref.) Rapid charge:2hours(Ref.)
8	Max.charge current	1.0C
9	Max.discharge current	1.0C
10	Discharge cut-off voltage	2.5V0.25V(0.2C)
11	Operating temperature	Charging:0°C~45°C Discharging:0°C~45°C
12	Storage temperature	-10°C~+45°C
13	Dimension	Length:70±2mm (not including tabs) Width:55±0.5mm Thickness:11±0.5mm
14	Drop Test	The cell is to be dropped from a height of meter twice onto concrete ground. No fire, no leakage
15	Cycle time	≥500times

Key Advantages

Safety: Aluminum-plastic flexible packaging structure ensures inflation without explosion in case of abnormality. Multiple built-in protection mechanisms for overcharge, overvoltage, over-discharge, and short circuit.
Thin and Lightweight: Less than 1mm thick and 40% lighter than similar steel-cased batteries, ideal for size- and weight-sensitive devices.
Long Cycle Life: Over 600 cycles with theoretical lifespan of 2-3 years, suitable for long-term applications.
Customizable: Form can be adjusted to meet specific needs, with optimized designs for specialized applications.
Low-Temperature Adaptability: Operates from 0°C to 45°C, with potential for lower temperature applications (performance evaluation required).

Applications

Consumer Electronics: Power banks, hand warmers, massagers, and other portable devices
Industrial Equipment: Smart locks, wearable products (watches/bracelets)
Special Scenarios: Devices for low-temperature environments (low-temperature performance evaluation required)

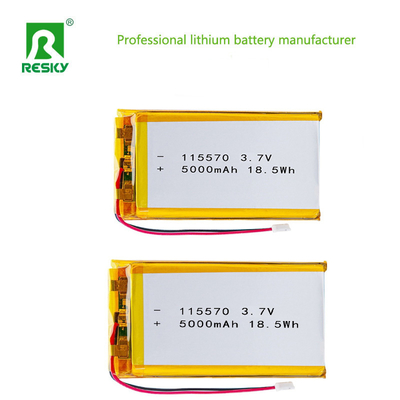

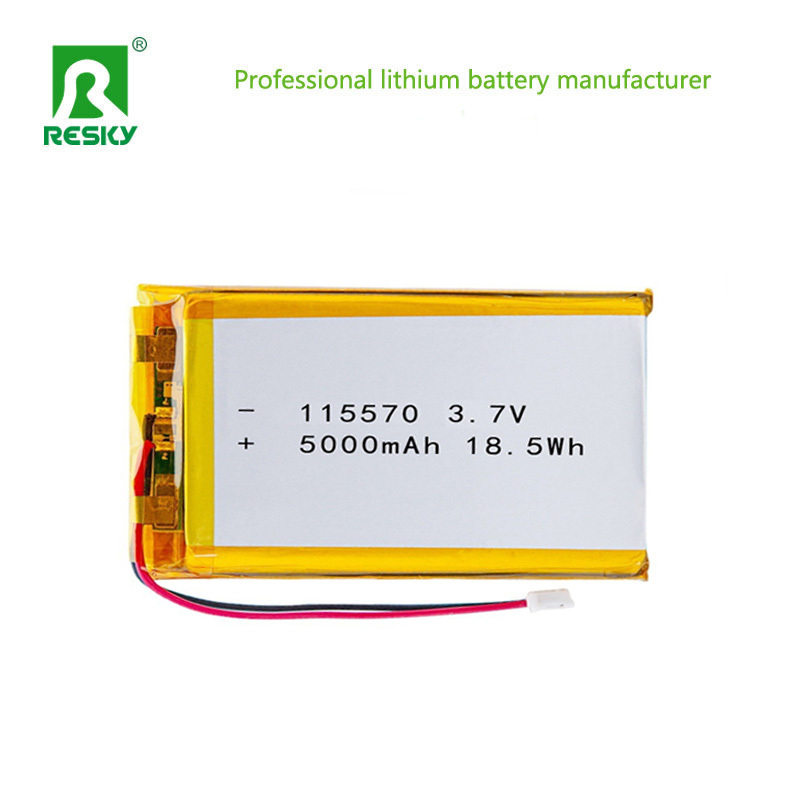

Product Images
