products details

Home > Products >

Lithium Polymer Battery Cell

Power Lithium battery Cell 523450 3.7v 1000mAh 3.7Wh Rechargeable Li Polymer Battery

All Category

RC Accessories

Mrs. Alice

alice@szresky.com

0086 13530058480

Contact Now

Power Lithium battery Cell 523450 3.7v 1000mAh 3.7Wh Rechargeable Li Polymer Battery

Brand Name:	RESKY
Model Number:	LP523450
MOQ:	10pcs
Price:	Negotiable
Packaging Details:	Standard exporting packages
Payment Terms:	Western Union,T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE, RoHS, MSDS, Un38.3

Shape:

Square Battery

Electrolyte:

Li(Nicomn)O2

Rechargeable:

Chargeable

Nominal Capacity:

1000mAh

Weight:

Connector:

Jst, Molex....

Color:

Blue PVC

Specification:

5.2*34*50mm

HS Code:

8507600090

Supply Ability:

100000PCS/Day

Supply Ability:

50000pcs/day

Highlight:

Rechargeable Li Polymer Battery Cell

523450 Lithium battery Cell

3.7V 1000mAh Lithium battery Cell

Product Description

Product Description

Power Lithium Battery Cell 523450 3.7v 1000mAh 3.7Wh Rechargeable Li Polymer Battery

NO.	Items	Specifications
1	batteries	7.4v 1000mah lipo battery
2	Charge voltage	8.4V
3	Nominal voltage	7.4V
4	Nominal capacity	1000mAh 0.2C Discharge
5	Charge current	Standard Charging:0.5C Rapid charge: 1.0C
6	Standard Charging method	0.5C CC(constant current)charge to 8.4V, then CV(constant voltage 8.4V)charge till charge current decline to ≤0.05C
7	Charging time	Standard Charging:2.75hours(Ref.) Rapid charge: 2hours(Ref.)
8	Max.charge current	1.0C
9	Max.discharge current	1.0C
10	Discharge cut-off voltage	2.5V0.25V(0.2C)
11	Operating temperature	Charging: 0 °C ~45 °C Discharging:0 °C ~45 °C
12	Storage temperature	-10°C~ +45 °C
13	Dimension	Length: 50±2mm (not including tabs) Width: 34±0.5mm Thickness:11±0.2mm
14	Drop Test	The cell is to be dropped from a height of meter twice onto concrete ground. No fire, no leakage
15	cycle time	≥500times

Connectors avaible:

What's the difference for lithium polymer battery and cylindrical battery?

Structure and Design:

Lithium Polymer Battery:

Shape and Flexibility: Lithium polymer batteries can be designed in various shapes, such as prismatic or even custom shapes, due to their flexible electrolyte and packaging materials.

Electrolyte: They use a gel-polymer electrolyte, which is a solidified liquid electrolyte embedded in a polymer matrix.

Cylindrical Battery:

Shape: Cylindrical batteries have a standard cylindrical shape with positive and negative terminals at the top and bottom, respectively.

Electrolyte: They typically use a liquid electrolyte.

Application:

‌MP3/MP4 player‌: As a mainstream portable device battery, it provides long-term battery life support. ‌

‌GPS tracker: Used for outdoor positioning equipment, requiring stable power supply performance. ‌

‌Bluetooth headset/speaker‌: Adapt to wireless devices, emphasizing lightweight and long battery life.

Storage precautions for lithium polymer batteries:

‌Temperature and humidity‌: The ideal storage temperature is 15-25℃. Avoid high temperature (＞35℃) or humid environment. High temperature will accelerate battery aging, and humidity may cause short circuit or corrosion. ‌

‌Power management‌: It is recommended to keep the power at 50% for long-term storage, and avoid full charge or over discharge. Regular charge and discharge cycles can maintain battery health. ‌

‌Isolation and protection‌: Keep away from fire and flammable materials. Use fireproof containers or fireproof bags when storing, and ensure good ventilation.

Certification:

CE, ROHS, MSDS, UN38.3, 1.2m drop testing, IEC62133, Ect...

Picures:

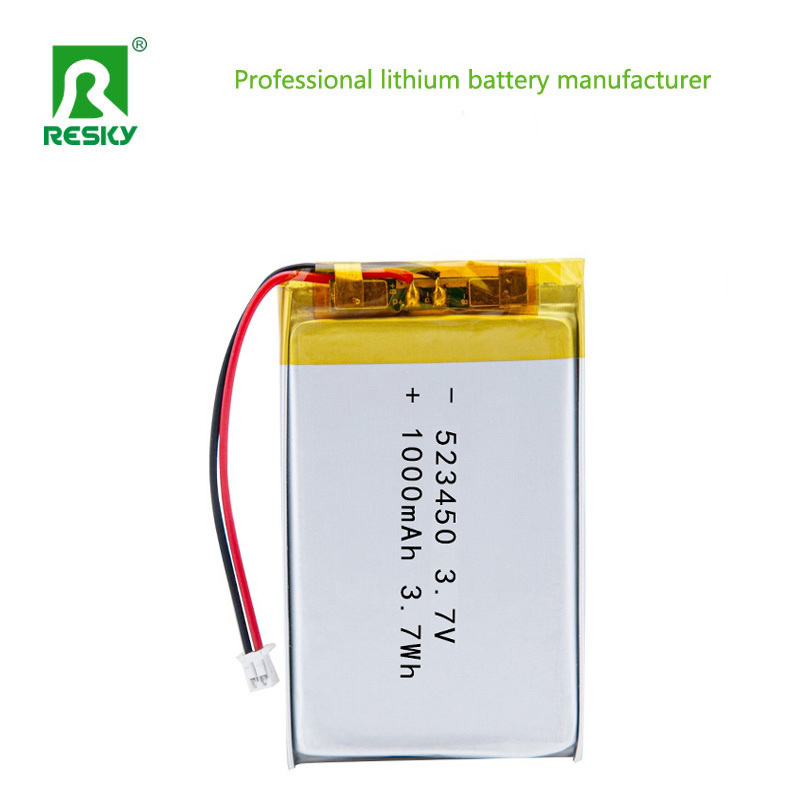

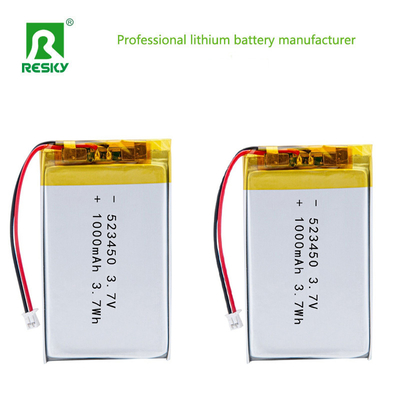

Power Lithium battery Cell 523450 3.7v 1000mAh 3.7Wh Rechargeable Li Polymer Battery 1
