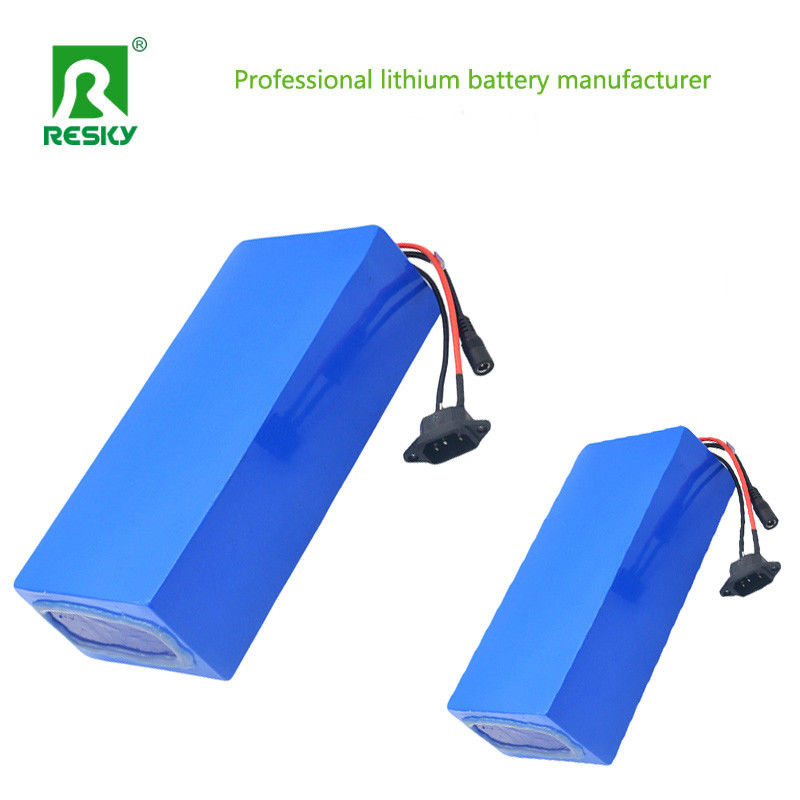

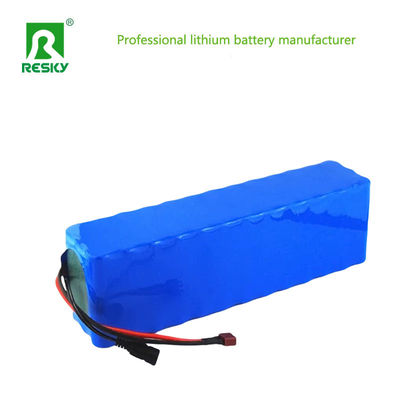

Panasonic NCR18650PF 36V 8700mAh Lithium Ion Battery Pack For 350w Electric Scooter

Brand Name:	RESKY
Model Number:	RSK-368.7
MOQ:	5pcs
Price:	Negotiable
Packaging Details:	Paper box
Payment Terms:	Western Union,T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE,RoHS,MSDS,Un38.3

Electrolyte:

Li(Nicomn)O2

Structure:

10s3p

Cell Type:

Panasonic 18650 2900mAh Battery Cells

Motor:

Charging Cut-off Voltage:

Charging Current:

Dishcarging Cut-off Voltage:

Continuous Discharging Current:

313wh

Peak Discharging Current:

Supply Ability:

500pcs/day

Highlight:

NCR18650PF Lithium Ion Battery Pack

Electric Scooter Lithium Ion Battery Pack

36V 8700mAh Lithium Ion Battery Pack

Product Description

Product Description

Panasonic NCR18650PF 36V 8700mAh Lithium Ion Battery Pack For 250w Electric Scooter

Specification:

Product name	36V 8.7Ah
Model	RSK-368.7
Rated Capacity	8.7Ah
Nominal Voltage	36V
Over discharge protection voltage	30V±0.05V
Over charge protection voltage	42V±0.05V
AC Impedance New Cell Max.(mΩ)	≤100 mΩ
Maximum Continuous Charge Current	≤5A adjustment
Maximum Continuous Discharge Current	≤10A adjustment
Maximum Pulse discharge current	≤15A adjustment
Operation Temperature Range	Charge: 0~45°C,Discharge: -20~60°C
Storage Temperature Range	Less than 1 year: -20~25°C
Storage Temperature Range	Less than 3 months: -20~40°C
Storage Temperature Range	Less than 30 Days: -25°C~45°C
Storage Temperature Range	Less than 90 Days: -25°C~30°C
Weight	Approx 1.8kg
Cycle Characteristic	500-800 times

Various cell type available:

1. Domestic ICR18650 battery cell(2600mAh, 2900mAh, 3400mAh, 3500mAh);

2. Panasonic: NCR18650F, NCR18650PF, NCR18650BE, NCR18650BD, NCR18650B, NCR18650BF, NCR18650GA;

3. Samsung cell available:

Samsung	INR1865035ET	3500	10A	3C
Samsung	INR1865025RM/RT	2500	20A	8C
Samsung	INR1865030Q/QM	3000	15A	5C
Samsung	INR2170050E	4800	10A	2C
Samsung	INR2170040T	4000	30A	7C
Samsung	INR2170050GB	5000	10A	2C
Samsung	INR2170050G	5000	10A	2C
Samsung	INR2170050S	5000	35A	7C

Various imported cell brand available:

Panasonic NCR18650PF 36V 8700mAh Lithium Ion Battery Pack For 350w Electric Scooter 0

Various assembling way:

Panasonic NCR18650PF 36V 8700mAh Lithium Ion Battery Pack For 350w Electric Scooter 1

Panasonic NCR18650PF 36V 8700mAh Lithium Ion Battery Pack For 350w Electric Scooter 2

Input & output plug:

Panasonic NCR18650PF 36V 8700mAh Lithium Ion Battery Pack For 350w Electric Scooter 3

Various application:

Panasonic NCR18650PF 36V 8700mAh Lithium Ion Battery Pack For 350w Electric Scooter 4

Why choose us?

1. We accept small quantity order or big quantity order;

2. We could accept any customized lithium battery pack orders;

3. We could accept orders with different requirements;

4. We guarantee 100% QC pass before delivery;

5. Fast production time, we have enough stock cells;

6. Fast solution confirmation, and quotation confirmation;

Factory pictures:

Battery cell warehouse:

Battery shell warehouse:

Automatic cylindrical battery cell sorting machine:

Assembled battery pack:

Completed battery in aging:

Panasonic NCR18650PF 36V 8700mAh Lithium Ion Battery Pack For 350w Electric Scooter 9

Pictures:

Panasonic NCR18650PF 36V 8700mAh Lithium Ion Battery Pack For 350w Electric Scooter 10
