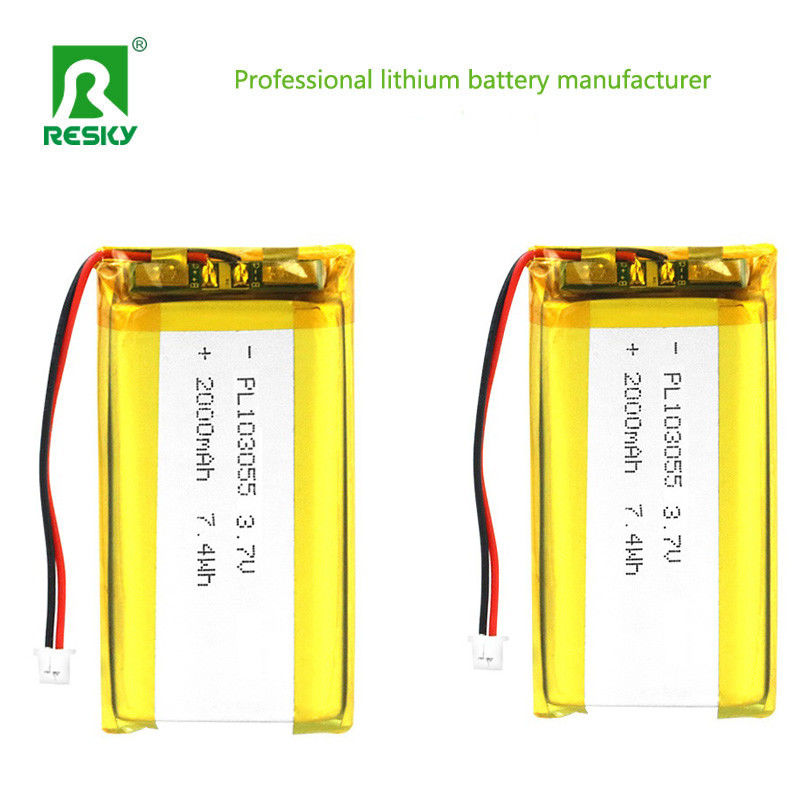

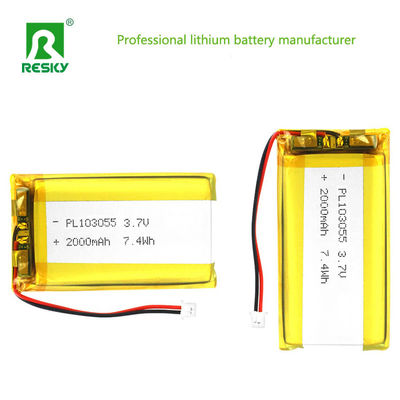

Power Lithium Ion Cell 103055 3.7V 2000mAh 7.4wh Rechargeable Lithium Polymer Battery

Brand Name:	RESKY
Model Number:	LP103055
MOQ:	10pcs
Price:	Negotiable
Packaging Details:	Paper box
Payment Terms:	T/T,Western Union

Detail Information

Product Description

Ratings & Reviews

Detail Information

Place of Origin:

China

Certification:

CE, RoHS, MSDS, Un38.3

Electrolyte:

Li(Nicomn)O2

Nominal Capacity:

2000mAh

Charging Current:

0.2c

Continuous Discharging Current:

0.5c

Weight:

50g

MOQ:

10PCS

Cycle Life:

500cycles

OEM Service:

Yes

Specification:

10*30*55mm

HS Code:

8507600090

Supply Ability:

50000pcs/day

Highlight:

2000mAh Lithium Polymer Battery

7.4wh Lithium Polymer Battery

3.7V Lithium Polymer Battery

Product Description

Power Lithium Ion Cell 103055 3.7V 2000mAh 7.4wh Rechargeable Lithium Polymer Battery

Product Attributes

Attribute	Value
Electrolyte	Li(Nicomn)O2
Nominal Capacity	2000mAh
Charging Current	0.2c
Continuous Discharging Current	0.5c
Weight	50g
MOQ	10PCS
Cycle Life	500cycles
OEM Service	Yes
Specification	103055mm
HS Code	8507600090

Technical Specifications

NO.	Items	Specifications
1	Batteries	3.7v 2000mah lipo battery
2	Charge voltage	4.2V
3	Nominal voltage	3.7V
4	Nominal capacity	2000mAh 0.2C Discharge
5	Charge current	Standard Charging: 0.5C Rapid charge: 1.0C
6	Standard Charging method	0.5C CC(constant current)charge to 4.2V, then CV(constant voltage 4.2V)charge till charge current decline to ≤0.05C
7	Charging time	Standard Charging: 2.75hours(Ref.) Rapid charge: 2hours(Ref.)
8	Max.charge current	1.0C
9	Max.discharge current	1.0C
10	Discharge cut-off voltage	2.5V0.25V(0.2C)
11	Operating temperature	Charging: 0°C ~45°C Discharging: 0°C ~45°C
12	Storage temperature	-10°C~ +45°C
13	Dimension	Length: 55±2mm (not including tabs) Width: 30±0.5mm Thickness: 10±0.5mm
14	Drop Test	The cell is to be dropped from a height of meter twice onto concrete ground. No fire, no leakage
15	Cycle time	≥500times

Key Advantages

Longer Run-Time: Thanks to its 2000mAh capacity, devices powered by this battery can operate for a longer duration compared to batteries with lower capacities.
Lightweight and Flexible: The battery's lightweight nature makes it suitable for portable devices where minimizing weight is crucial.
Good Discharge Characteristics: Provides a stable and consistent power output during discharge.
High Energy Density: Can store a large amount of energy in a relatively small space.
Low Self-Discharge Rate: Retains its charge for a longer time when not in use.

Applications

This battery is ideal for:
