RC Lithium Battery Cell 10745150 3.7v 11.1v 8000mAh Storage Lithium Ion Battery Pack

Brand Name:	RESKY
Model Number:	LP10745150SH35
MOQ:	10PCS
Price:	6-10USD
Packaging Details:	Paper box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE,ROHS,MSDS,UN38.3

Nominal Capacity:

8000mAh

Charging Current:

Continuous Discharging Current:

Peak Discharging Current:

Warranty:

12months

Cycle Life:

500times

Weight:

Shipping:

UPS, DHL, FedEx, TNT, By Air, By Sea

OEM Service:

Working Voltage:

11.1V

Supply Ability:

20000PCS/DAY

Highlight:

3.7v RC Lithium Battery Cell

8000mAh RC Lithium Battery Cell

10745150 RC Lithium Battery Cell

Product Description

RC Lithium Battery Cell 10745150 3.7v 11.1v 8000mAh Storage Lithium Ion Battery Pack

Product Specifications

Attribute	Value
Nominal Capacity	8000mAh
Charging Current	0.2C
Continuous Discharging Current	35C
Peak Discharging Current	70C
Warranty	12 months
Cycle life	500 times
Weight	164g
Shipping	UPS, DHL, FedEx, TNT, by Air, by Sea
OEM Service	Yes
Working voltage	11.1V

Technical Details

NO.	Items	Specifications
1	Batteries	3.7V 8000mAh LiPo battery
2	Charge voltage	4.2V
3	Nominal voltage	3.7V
4	Nominal capacity	8000mAh 35C Discharge
5	Charge current	Standard Charging: 0.2C Rapid charge: 70C
6	Standard Charging method	0.5C CC(constant current) charge to 4.2V, then CV(constant voltage 4.2V) charge till charge current decline to ≤0.05C
7	Charging time	Standard Charging: 2.75 hours (Ref.) Rapid charge: 2 hours (Ref.)
8	Max. charge current	0.5C
9	Max. discharge current	70.0C
10	Discharge cut-off voltage	2.5V 0.25V(0.2C)
11	Operating temperature	Charging: 0°C ~45°C Discharging: 0°C ~45°C
12	Storage temperature	-10°C ~ +45°C
13	Dimension	Length: 150±0.5mm (not including tabs) Width: 45±0.5mm Thickness: 10.7±0.2mm
14	Drop Test	The cell is to be dropped from a height of meter twice onto concrete ground. No fire, no leakage
15	Cycle time	≥500 times

Key Features

Capacity and Voltage:

Capacity: Measured in milliampere-hours (mAh), this determines how long the RC vehicle will run per charge. A higher mAh rating means longer run time.
Voltage: Determines the speed and power of the RC model. The voltage of a battery pack is the sum of the voltages of its individual cells.

Safety and Maintenance:

LiPo batteries require careful handling to avoid overcharging, over-discharging, and short-circuiting, which can lead to fire or explosion.
It is recommended to use a charger designed for the specific type of battery and to regularly monitor the battery's health and performance.

Performance Over Time:

RC batteries gradually lose performance over time, manifesting as decreased voltage and reduced run time.
Proper care and maintenance can extend the lifespan of the battery.

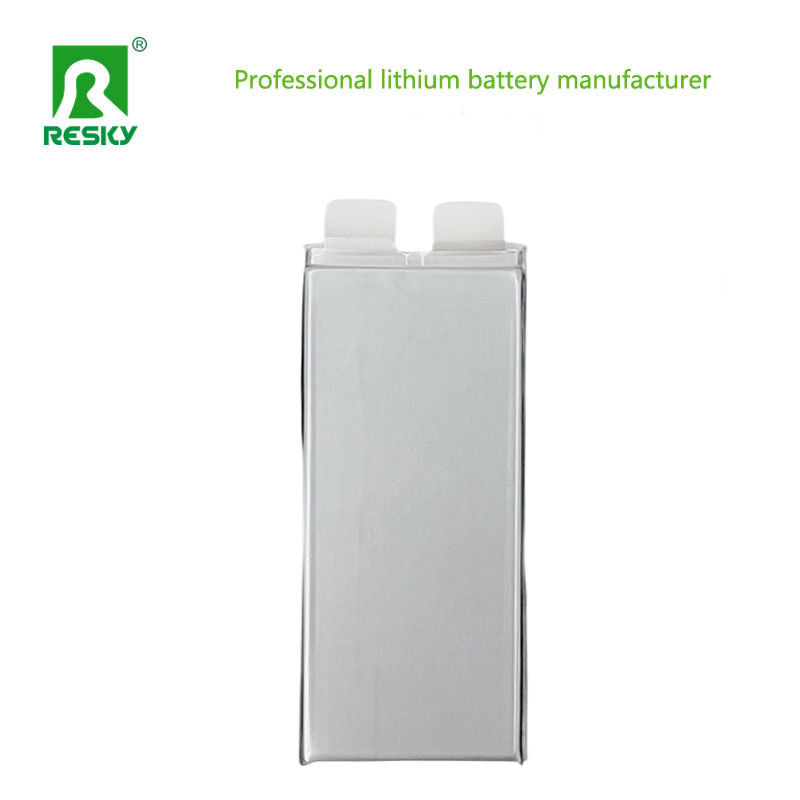

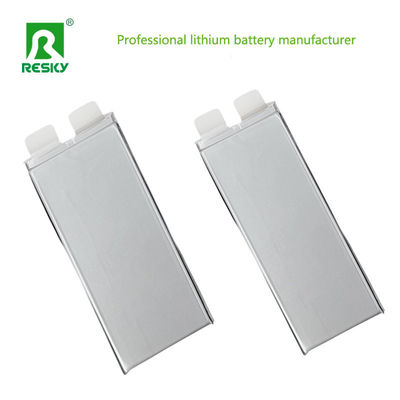

Product Images
