RC Lithium Battery

22.2v 6000mAh 133wh Rechargeable Lithium Battery Cell 8545150 3.7v with Max Discharging Current 20c

All Category

RC Accessories

Mrs. Alice

alice@szresky.com

0086 13530058480

0086 13530058480

Contact Now

22.2v 6000mAh 133wh Rechargeable Lithium Battery Cell 8545150 3.7v with Max Discharging Current 20c

Brand Name:	RESKY
Model Number:	LP8545150SH20
MOQ:	10pcs
Price:	Negotiable
Packaging Details:	Paper box
Payment Terms:	T/T,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE, RoHS, MSDS, Un38.3

Electrolyte:

Li(Nicomn)O2

Nominal Capacity:

6000mAh

Max Discharging Current:

Peak Discharging Current:

Weight:

768g±4%

Warranty:

12months

Connector:

Xt60, Xt90, T-Type, Anderson, Bullet

Cell Size:

8.5*45*150mm

HS Code:

8507600090

Working Voltage:

22.2V

Supply Ability:

10000pcs/day

Highlight:

22.2v 6000mAh Rechargeable Lithium Battery Cell

3.7v 6000mAh Rechargeable Lithium Battery Cell

133wh 6000mAh Rechargeable Lithium Battery Cell

Product Description

22.2V 6000mAh 133Wh Rechargeable Lithium Battery Cell 8545150 3.7V with Max Discharging Current 20C

Product Attributes

Attribute	Value
Electrolyte	Li(Nicomn)O2
Nominal Capacity	6000mAh
Max Discharging Current	20C
Peak Discharging Current	40C
Weight	768g±4%
Warranty	12months
Connector	Xt60, Xt90, T-Type, Anderson, Bullet
Cell size	8.545150mm
HS Code	8507600090
Working voltage	22.2V

Product Specifications

NO.	Items	Specifications
1	Batteries	3.7V 6000mAh LiPo battery
2	Charge voltage	4.2V
3	Nominal voltage	3.7V
4	Nominal capacity	6000mAh 15C Discharge
5	Charge current	Standard Charging: 0.2C Rapid charge: 15C
6	Standard Charging method	0.5C CC(constant current) charge to 4.2V, then CV(constant voltage 4.2V) charge till charge current decline to ≤0.05C
7	Charging time	Standard Charging: 2.75hours(Ref.) Rapid charge: 2hours(Ref.)
8	Max.charge current	0.5C
9	Max.discharge current	35.0C
10	Discharge cut-off voltage	2.5V±0.25V(0.2C)
11	Operating temperature	Charging: 0°C ~45°C Discharging: 0°C ~45°C
12	Storage temperature	-10°C~ +45°C
13	Dimension	Length: 150±0.5mm (not including tabs) Width: 45±0.5mm Thickness: 8.5±0.2mm
14	Drop Test	The cell is to be dropped from a height of meter twice onto concrete ground. No fire, no leakage
15	Cycle time	≥500times

Key Features

Capacity and Voltage: Capacity determines how long the RC vehicle will run per charge. A higher mAh rating means longer run time. Voltage determines the speed and power of the RC model.

Safety and Maintenance: LiPo batteries require careful handling to avoid overcharging, over-discharging, and short-circuiting. Use a charger designed for the specific battery type and regularly monitor battery health.

Performance Over Time: RC batteries gradually lose performance over time. Proper care and maintenance can extend the battery lifespan.

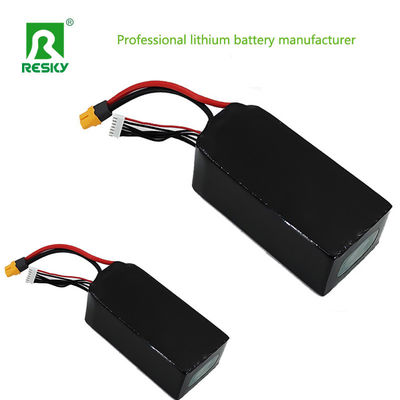

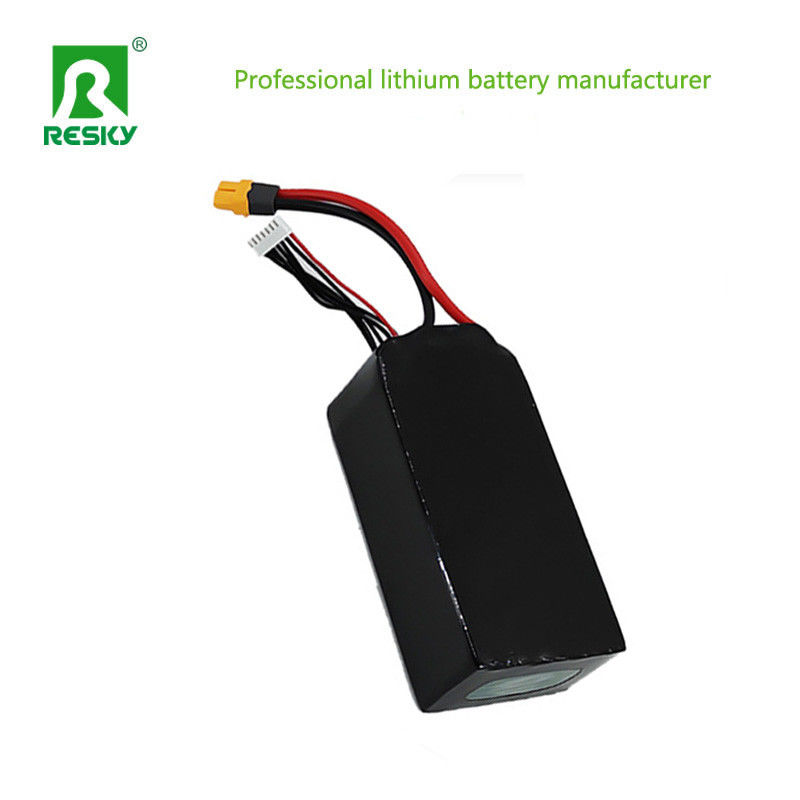

Product Images

Tags:

RC Lipo Battery Pack

RC Lithium Ion Battery

Li Ion RC Battery
