9759156 3.7v 37Wh RC Drone Rechargeable Lithium Ion Battery Pack High Capacity 10000mAh 25C Discharging Rate Power Battery

All Category

RC Accessories

Mrs. Alice

alice@szresky.com

0086 13530058480

Contact Now

9759156 3.7v 37Wh RC Drone Rechargeable Lithium Ion Battery Pack High Capacity 10000mAh 25C Discharging Rate Power Battery

Brand Name:	RESKY
Model Number:	LP9759156
MOQ:	10pcs
Price:	Negotiable
Packaging Details:	Paper box
Payment Terms:	T/T,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE, RoHS, MSDS, Un38.3

Rated Capacity:

10000mAh

Standard Voltage:

Charging Cut-off Voltage:

Weight:

200g±5g

Connector:

Xt60, Xt90, T-Type, Anderson, Bullet

OEM Service:

Specification:

9.7*59*156mm

HS Code:

8507600090

Discharging Rate:

Application:

RC Drone, Rc Boat, Ect

Supply Ability:

10000pcs/day

Highlight:

3.7v 10000mAh RC Drone Battery

37Wh 10000mAh RC Drone Battery

25C Discharging Rate RC Drone Battery

Product Description

Product Description

Power Battery 9759156 3.7v 10000mAh 37Wh 25C RC Drone Rechargeable Lithium Ion Battery Pack

NO.	Items	Specifications
1	batteries	3.7V 10000mah lipo battery
2	Charge voltage	4.2V
3	Nominal voltage	2.75V
4	Nominal capacity	10000mAh 25C Discharge
5	Charge current	Standard Charging:0.2C Rapid charge: 0.5C
6	Standard Charging method	0.5C CC(constant current)charge to 4.2V, then CV(constant voltage 4.2V)charge till charge current decline to ≤0.05C
7	Charging time	Standard Charging:2.75hours(Ref.) Rapid charge: 2hours(Ref.)
8	Max.charge current	0.5C
9	Max.discharge current	25.0C
10	Discharge cut-off voltage	2.75V(0.2C)
11	Operating temperature	Charging: 0 °C ~45 °C Discharging:0 °C ~45 °C
12	Storage temperature	-10°C~ +45 °C
13	Dimension	Length:156±2mm (not including tabs) Width:59±0.5mm Thickness:9.7±0.2mm
14	Drop Test	The cell is to be dropped from a height of meter twice onto concrete ground. No fire, no leakage
15	cycle time	≥500times

Features:

Safety and Maintenance:

LiPo batteries, in particular, require careful handling to avoid overcharging, over-discharging, and short-circuiting, which can lead to fire or explosion.

It is recommended to use a charger designed for the specific type of battery and to regularly monitor the battery's health and performance.

Design and Construction:

Batteries come in various shapes and sizes to fit different RC vehicles. Some models have hard cases for protection, while others are soft-packed for flexibility.

The internal structure of the battery, including the arrangement of cells (series or parallel), affects its voltage, capacity, and discharge rate.

Performance Over Time:

RC batteries gradually lose performance over time, manifesting as decreased voltage and reduced run time. Proper care and maintenance can extend the lifespan of the battery.

Pictures:

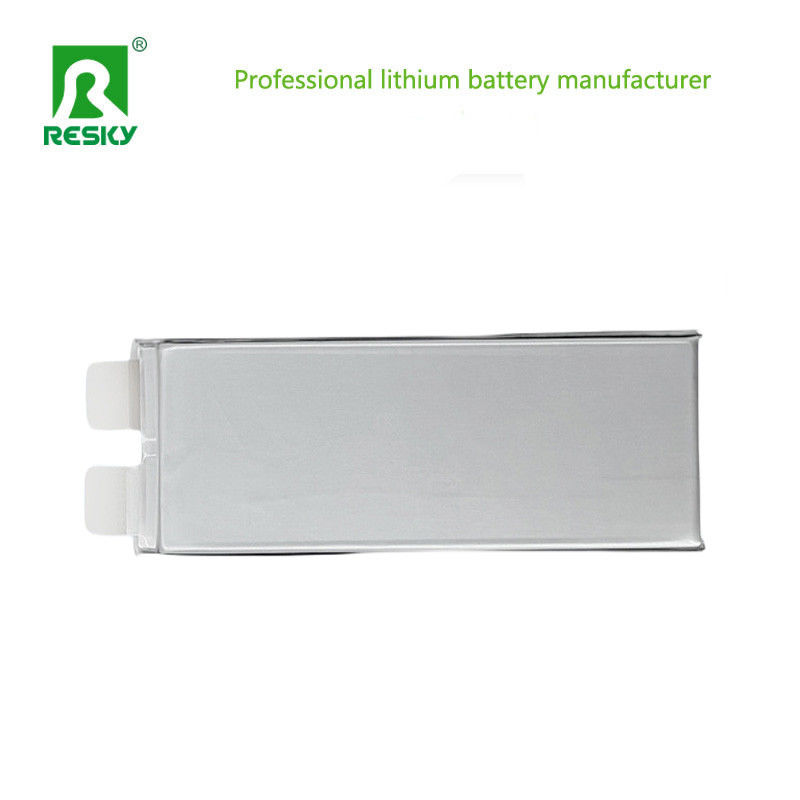

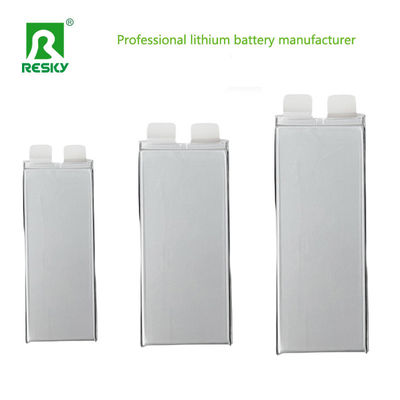

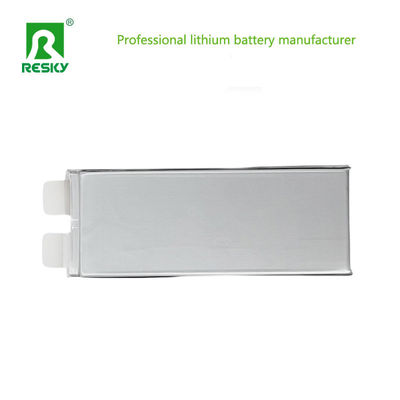

9759156 3.7v 37Wh RC Drone Rechargeable Lithium Ion Battery Pack High Capacity 10000mAh 25C Discharging Rate Power Battery 0
