RC Lithium Battery

Xt60 Connector Power Lithium Battery Cell 9564155 3.7v 10000mAh 37Wh 20C Rechargeable Lithium Battery for High Capacity

All Category

RC Accessories

Mrs. Alice

alice@szresky.com

0086 13530058480

Contact Now

Xt60 Connector Power Lithium Battery Cell 9564155 3.7v 10000mAh 37Wh 20C Rechargeable Lithium Battery for High Capacity

Brand Name:	RESKY
Model Number:	LP9564155
MOQ:	10pcs
Price:	Negotiable
Packaging Details:	Paper box
Payment Terms:	T/T,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE, RoHS, MSDS, Un38.3

Rated Capacity:

10000mAh

Charging Cut-off Voltage:

Weight:

Connector:

Xt60, Xt90, T-Type, Anderson, Bullet, Ect

Voltage Range:

3.7V-22.2V

PVC Color:

Blue, Black, Orange, Red Ect

Specification:

9.5*64*155mm

HS Code:

8507600090

Discharging Rate:

Power:

Supply Ability:

10000pcs/day

Highlight:

3.7v 10000mAh Lithium Battery Cell

9564155 Lithium Battery Cell

Xt60 Connector Lithium Battery Cell

Product Description

Product Description

Power Lithium Battery Cell 9564155 3.7v 10000mAh 37Wh 20C Rechargeable Lithium Battery

NO.	Items	Specifications
1	batteries	3.7V 10000mah lipo battery
2	Charge voltage	4.2V
3	Nominal voltage	2.75V
4	Nominal capacity	10000mAh 10C Discharge
5	Charge current	Standard Charging:0.2C Rapid charge: 0.5C
6	Standard Charging method	0.5C CC(constant current)charge to 4.2V, then CV(constant voltage 4.2V)charge till charge current decline to ≤0.05C
7	Charging time	Standard Charging:2.75hours(Ref.) Rapid charge: 2hours(Ref.)
8	Max.charge current	0.5C
9	Max.discharge current	40.0C
10	Discharge cut-off voltage	2.75V(0.2C)
11	Operating temperature	Charging: 0 °C ~45 °C Discharging:0 °C ~45 °C
12	Storage temperature	-10°C~ +45 °C
13	Dimension	Length:155±2mm (not including tabs) Width:64±0.5mm Thickness:9.5±0.2mm
14	Drop Test	The cell is to be dropped from a height of meter twice onto concrete ground. No fire, no leakage
15	cycle time	≥500times

Features:

Safety and Maintenance:

LiPo batteries, in particular, require careful handling to avoid overcharging, over-discharging, and short-circuiting, which can lead to fire or explosion.

It is recommended to use a charger designed for the specific type of battery and to regularly monitor the battery's health and performance.

Design and Construction:

Batteries come in various shapes and sizes to fit different RC vehicles. Some models have hard cases for protection, while others are soft-packed for flexibility.

The internal structure of the battery, including the arrangement of cells (series or parallel), affects its voltage, capacity, and discharge rate.

Performance Over Time:

RC batteries gradually lose performance over time, manifesting as decreased voltage and reduced run time. Proper care and maintenance can extend the lifespan of the battery.

Pictures:

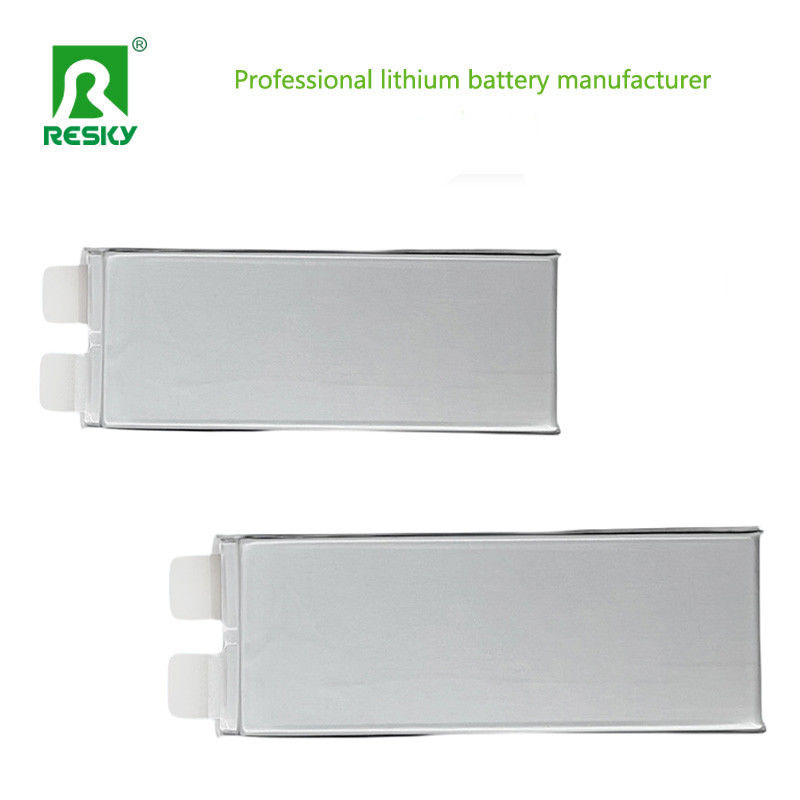

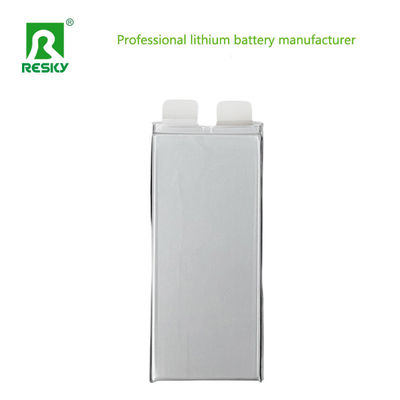

Xt60 Connector Power Lithium Battery Cell 9564155 3.7v 10000mAh 37Wh 20C Rechargeable Lithium Battery for High Capacity 0
