RC Lithium Battery

Rechargeable Battery 1174170 LP11074173 3.7v 16000mAh 10C RC Drone Power Lithium Ion Battery Pack

All Category

RC Accessories

Mrs. Alice

alice@szresky.com

0086 13530058480

Contact Now

Rechargeable Battery 1174170 LP11074173 3.7v 16000mAh 10C RC Drone Power Lithium Ion Battery Pack

Brand Name:	RESKY
Model Number:	LP1174173
MOQ:	10pcs
Price:	Negotiable
Packaging Details:	Paper box
Payment Terms:	T/T,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE, RoHS, MSDS, Un38.3

Rated Capacity:

16000mAh

Standard Voltage:

Weight:

311g±2.5%

Connector:

Xt60, Xt90, T-Type, Anderson, Bullet

Voltage Range:

3.7V-22.2V

OEM Service:

Specification:

10.8*74*170mm

HS Code:

8507600090

Discharging Rate:

Application:

RC Drone, Rc Boat, Ect

Power:

59.2wh

Supply Ability:

10000pcs/day

Highlight:

3.7v Rechargeable Battery

16000mAh Rechargeable Battery

1174170 Rechargeable Battery

Product Description

Product Description

Rechargeable Battery 1174170 LP11074173 3.7v 16000mAh 10C RC Drone Power Lithium Ion Battery Pack

NO.	Items	Specifications
1	batteries	3.7V 16000mah lipo battery
2	Charge voltage	4.2V
3	Nominal voltage	2.75V
4	Nominal capacity	16000mAh 10C Discharge
5	Charge current	Standard Charging:0.2C Rapid charge: 0.5C
6	Standard Charging method	0.5C CC(constant current)charge to 4.2V, then CV(constant voltage 4.2V)charge till charge current decline to ≤0.05C
7	Charging time	Standard Charging:2.75hours(Ref.) Rapid charge: 2hours(Ref.)
8	Max.charge current	0.5C
9	Max.discharge current	40.0C
10	Discharge cut-off voltage	2.75V(0.2C)
11	Operating temperature	Charging: 0 °C ~45 °C Discharging:0 °C ~45 °C
12	Storage temperature	-10°C~ +45 °C
13	Dimension	Length:173±2mm (not including tabs) Width:74±0.5mm Thickness:11±0.2mm
14	Drop Test	The cell is to be dropped from a height of meter twice onto concrete ground. No fire, no leakage
15	cycle time	≥500times

Features:

Safety and Maintenance:

LiPo batteries, in particular, require careful handling to avoid overcharging, over-discharging, and short-circuiting, which can lead to fire or explosion.

It is recommended to use a charger designed for the specific type of battery and to regularly monitor the battery's health and performance.

Design and Construction:

Batteries come in various shapes and sizes to fit different RC vehicles. Some models have hard cases for protection, while others are soft-packed for flexibility.

The internal structure of the battery, including the arrangement of cells (series or parallel), affects its voltage, capacity, and discharge rate.

Performance Over Time:

RC batteries gradually lose performance over time, manifesting as decreased voltage and reduced run time. Proper care and maintenance can extend the lifespan of the battery.

Pictures:

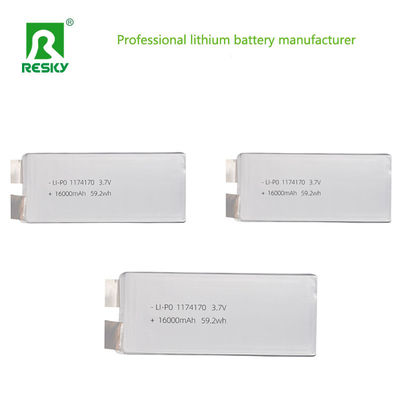

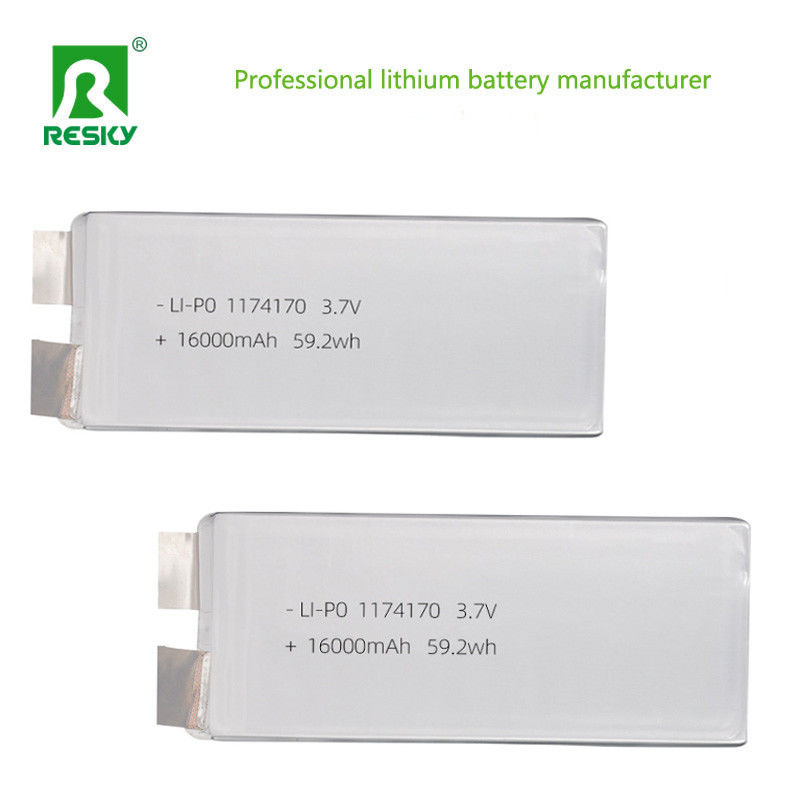

Rechargeable Battery 1174170 LP11074173 3.7v 16000mAh 10C RC Drone Power Lithium Ion Battery Pack 0
