RC Lithium Cell 1174170 10874170 3.7v 16000mAh 10C RC Drone Lithium Ion Battery Pack

Brand Name:	RESKY
Model Number:	LP10874170
MOQ:	10pcs
Price:	Negotiable
Packaging Details:	Paper box
Payment Terms:	T/T,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE, RoHS, MSDS, Un38.3

Rated Capacity:

16000mAh

Standard Voltage:

Charging Cut-off Voltage:

Weight:

Connector:

Xt60, Xt90, T-Type, Anderson, Bullet

Color:

Blue, Black, Red, Or Other Customized

OEM Service:

Specification:

10.8*74*170mm

HS Code:

8507600090

Discharging Rate:

5C/10C

Application:

RC Drone, Rc Boat, Ect

Supply Ability:

10000pcs/day

Highlight:

16000mAh RC Lithium Cell

3.7v RC Lithium Cell

Drone Lithium Ion Battery Pack

Product Description

RC Lithium Cell 1174170 10874170 3.7v 16000mAh 10C RC Drone Lithium Ion Battery Pack

Product Attributes

Attribute	Value
Rated Capacity	16000mAh
Standard Voltage	3.7V
Charging cut-off voltage	4.2V
Weight	342g
Connector	Xt60, Xt90, T-Type, Anderson, Bullet
Color	Blue, Black, Red, or Other Customized
OEM Service	Yes
Specification	10.874170mm
HS Code	8507600090
Discharging rate	5C/10C
Application	RC drone, rc boat, etc

Technical Specifications

NO.	Items	Specifications
1	Batteries	3.7V 16000mah lipo battery
2	Charge voltage	4.2V
3	Nominal voltage	2.75V
4	Nominal capacity	16000mAh 10C Discharge
5	Charge current	Standard Charging:0.2C Rapid charge: 0.5C
6	Standard Charging method	0.5C CC(constant current)charge to 4.2V, then CV(constant voltage 4.2V)charge till charge current decline to ≤0.05C
7	Charging time	Standard Charging:2.75hours(Ref.) Rapid charge: 2hours(Ref.)
8	Max.charge current	0.5C
9	Max.discharge current	40.0C
10	Discharge cut-off voltage	2.75V(0.2C)
11	Operating temperature	Charging: 0°C ~45°C Discharging:0°C ~45°C
12	Storage temperature	-10°C~ +45°C
13	Dimension	Length:170±2mm (not including tabs) Width:74±0.5mm Thickness:10.5±0.2mm
14	Drop Test	The cell is to be dropped from a height of meter twice onto concrete ground. No fire, no leakage
15	cycle time	≥500times

Key Features

Safety and Maintenance

LiPo batteries, in particular, require careful handling to avoid overcharging, over-discharging, and short-circuiting, which can lead to fire or explosion.

It is recommended to use a charger designed for the specific type of battery and to regularly monitor the battery's health and performance.

Design and Construction

Batteries come in various shapes and sizes to fit different RC vehicles. Some models have hard cases for protection, while others are soft-packed for flexibility.

The internal structure of the battery, including the arrangement of cells (series or parallel), affects its voltage, capacity, and discharge rate.

Performance Over Time

RC batteries gradually lose performance over time, manifesting as decreased voltage and reduced run time. Proper care and maintenance can extend the lifespan of the battery.

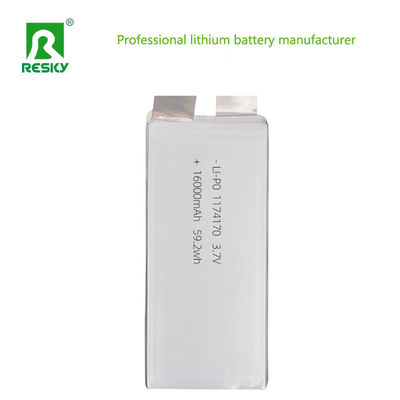

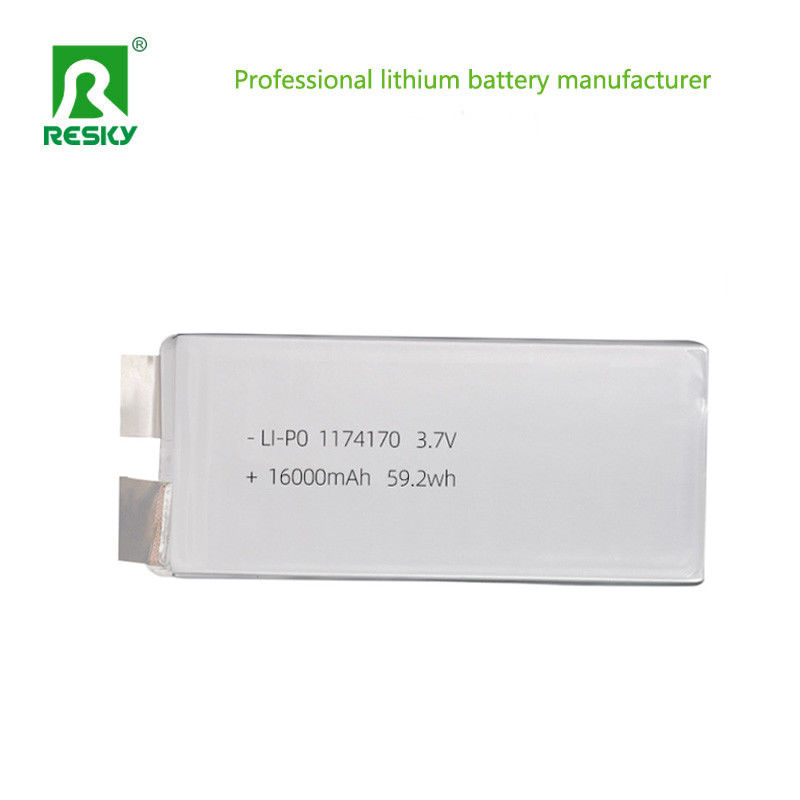

Product Images
