RC Balance Charger

Imaxb6 RC Lipo Balance Charger 80W 1-6A For 2-6s Lithium Polymer Battery Pack

All Category

RC Accessories

Mrs. Alice

alice@szresky.com

0086 13530058480

Contact Now

Imaxb6 RC Lipo Balance Charger 80W 1-6A For 2-6s Lithium Polymer Battery Pack

Brand Name:	RESKY
Model Number:	IMAXB6
MOQ:	10pcs
Price:	Negotiable
Packaging Details:	Color box
Payment Terms:	T/T,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

SASO, GOST-R, KC, PSE, CTIA, RoHS, TUV, CE

Document:

Compatible Battery Type:

Lipo, LiFePO4, Ni-MH, Ni-CD

Max Charge Power:

Li-ion/Fe/Polymer Cell Count:

1-6cells

NiCd/NiMH Battery Cell Count:

1-15cells

DC Output:

11-18 Volts

Battery Voltage:

2-20V

Dimensions:

133 X 87 X 33 Mm

Weight:

Package Type:

Color Box

HS Code:

8504409990

Supply Ability:

10000pcs/day

Highlight:

Imaxb6 RC Lipo Balance Charger

80W RC Lipo Balance Charger

Lithium Polymer Battery RC Charger

Product Description

RC Balance Charger Imaxb6 80W 1-6A For 2-6s Lithium Polymer Battery Pack

Product Description

Specification:

Lipo NiCad NiMH 2S-6S imax b6 lipo battery balance charger

- Operation voltage range : DC 10.0 ~ 20.0 Volt

- Circuit power : AC to DC adaptor (DC 10.0 ~ 20.0V / 6A)

- Max. charge power 80W

- Max. discharge power 10W

- Charge current range : 0.1~6.0A

- Discharge current range : 0.1~2.0A

- Current drain for balancing Li-Po : 300mAh/cell

- NiCd / NiMH battery cell count  : 1~15 cell

- Li-Ion / Polymer cell count : 1~6 series

- Pb battery voltage : 2V~20V

- Weight : 277g (Net Weight)

- Dimensions : 133 x 87 x 33 mm

Features:

Excellent Safety Design

Reverse Polarity Protection: It can prevent current from flowing when the battery is connected incorrectly, protecting the charger and battery from damage.

Overcharge Protection: It can detect when the battery is fully charged and automatically stop the charging process to avoid overcharging.

Overcurrent Protection: The charger can limit the current to prevent damage to the charger and battery from excessive current.

Overheat Protection: There is built - in overheat protection. When the temperature inside the charger is too high, the charging or discharging process will be automatically stopped.

Delta Peak Sensitivity: Based on the principle of peak voltage detection, the automatic charging termination program will stop the charging process when the battery voltage exceeds the threshold3.

User - Friendly Operation

LCD Display: It is equipped with a backlit dot - matrix LCD that can display operation menus and charging status, making it convenient and intuitive for users12.

Easy Parameter Setting: With simple button operations, users can easily select battery types, set charging and discharging currents, and other parameters.

Data Storage: It can store data for up to 5 batteries, which is convenient for users to retain relevant program settings for continuous charging or discharging of batteries3

Pictures:

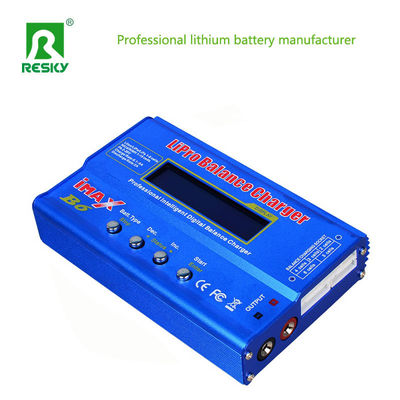

Imaxb6 RC Lipo Balance Charger 80W 1-6A For 2-6s Lithium Polymer Battery Pack 0

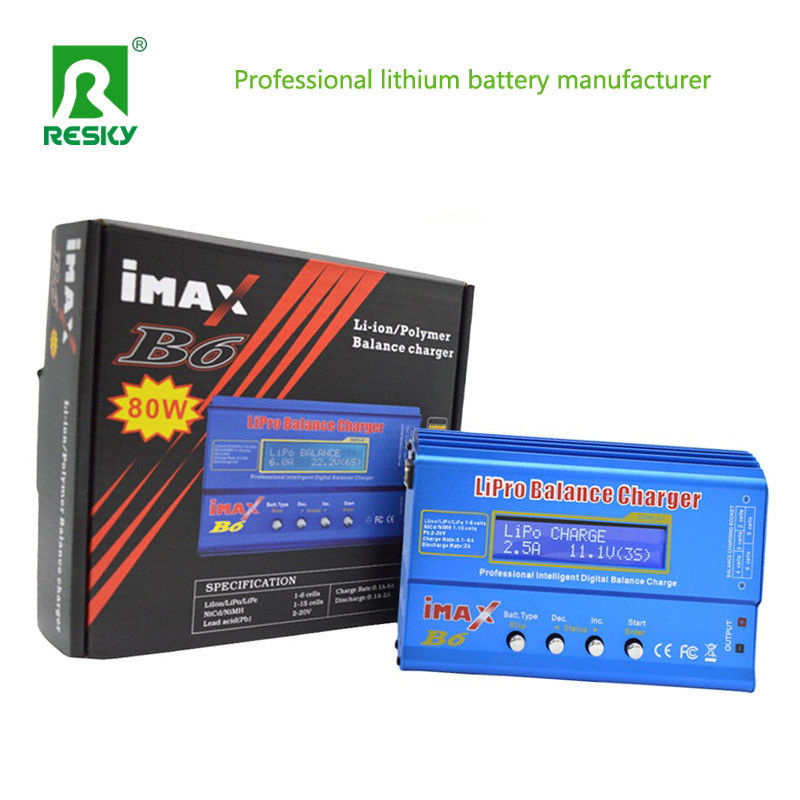

Imaxb6 RC Lipo Balance Charger 80W 1-6A For 2-6s Lithium Polymer Battery Pack 1

Imaxb6 RC Lipo Balance Charger 80W 1-6A For 2-6s Lithium Polymer Battery Pack 2

Imaxb6 RC Lipo Balance Charger 80W 1-6A For 2-6s Lithium Polymer Battery Pack 3

Imaxb6 RC Lipo Balance Charger 80W 1-6A For 2-6s Lithium Polymer Battery Pack 4
