BMS RC Lithium Battery 15c 4s 6s 22.2V 16000mAh For RC Quadcopter

All Category

Lithium Polymer Battery Cell

RC Lithium Battery

Li-Ion Battery Pack

Lithium Polymer Battery Pack

Heated Lithium Battery

Electric Bike Battery

RC Balance Charger

Rechargeable Battery Charger

RC Accessories

Mrs. Alice

alice@szresky.com

0086 13530058480

0086 13530058480

Contact Now

BMS RC Lithium Battery 15c 4s 6s 22.2V 16000mAh For RC Quadcopter

Brand Name:	RESKY
Model Number:	LP14570170SH15
MOQ:	10pcs
Price:	Negotiable
Packaging Details:	Paper box
Payment Terms:	Western Union,T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE, RoHS, MSDS, Un38.3

Rated Capacity:

16000mAh

Standard Voltage:

22.2V

Usage:

Remote Control Boat, Remote Control Plane, Remote Control Car, RC Uav, RC Drone

Electrolyte:

Lico02

Charging Current:

Cycle Life:

500cycles

Weight:

Connector:

Xt60, Xt90, T-Type, Anderson, Bullet

Specification:

14.5*70*170mm

HS Code:

8507600090

Supply Ability:

3000pcs/day

Highlight:

BMS RC Lithium Battery

RC Lithium Battery 15c

RC Quadcopter Lithium Ion Battery

Product Description

BMS RC Lithium Battery 15c 4s 6s 22.2V 16000mAh For RC Quadcopter

Product Specifications

NO.	Items	Specifications
1	Batteries	3.7V 16000mAh LiPo battery
2	Charge voltage	4.2V
3	Nominal voltage	2.75V
4	Nominal capacity	16000mAh 20C Discharge
5	Charge current	Standard Charging: 0.2C Rapid charge: 0.5C
6	Standard Charging method	0.5C CC charge to 4.2V, then CV charge till current ≤0.05C
7	Charging time	Standard Charging: 2.75 hours Rapid charge: 2 hours
8	Max. charge current	0.5C
9	Max. discharge current	40.0C
10	Discharge cut-off voltage	2.75V (0.2C)
11	Operating temperature	Charging: 0°C ~45°C Discharging: 0°C ~45°C
12	Storage temperature	-10°C ~ +45°C
13	Dimension	Length: 170±2mm Width: 70±0.5mm Thickness: 14.5±0.2mm
14	Drop Test	1m drop test onto concrete twice - no fire, no leakage
15	Cycle time	≥500 cycles

Manufacturing Process

Cell Selection: High-quality lithium-polymer cells selected based on capacity (16000mAh) and discharge rate (15C) requirements for optimal RC quadcopter performance.

Cell Matching: Cells precisely matched for voltage and capacity to ensure balanced performance and safety throughout the battery pack.

Pre-assembly Preparation: Thorough cleaning and tab preparation to ensure reliable electrical connections and prevent short circuits.

Assembly: Professional soldering techniques used to create secure series/parallel connections (4s/6s configuration) with high-conductivity materials.

Protection Circuit Installation: Integrated BMS protects against overcharge, overdischarge, and short circuits while balancing cell voltages.

Packaging and Encapsulation: High-grade insulating materials and protective casing ensure durability and safety in demanding RC applications.

Testing and Quality Assurance: Rigorous electrical, safety, and performance testing including capacity verification, protection circuit validation, and stress testing.

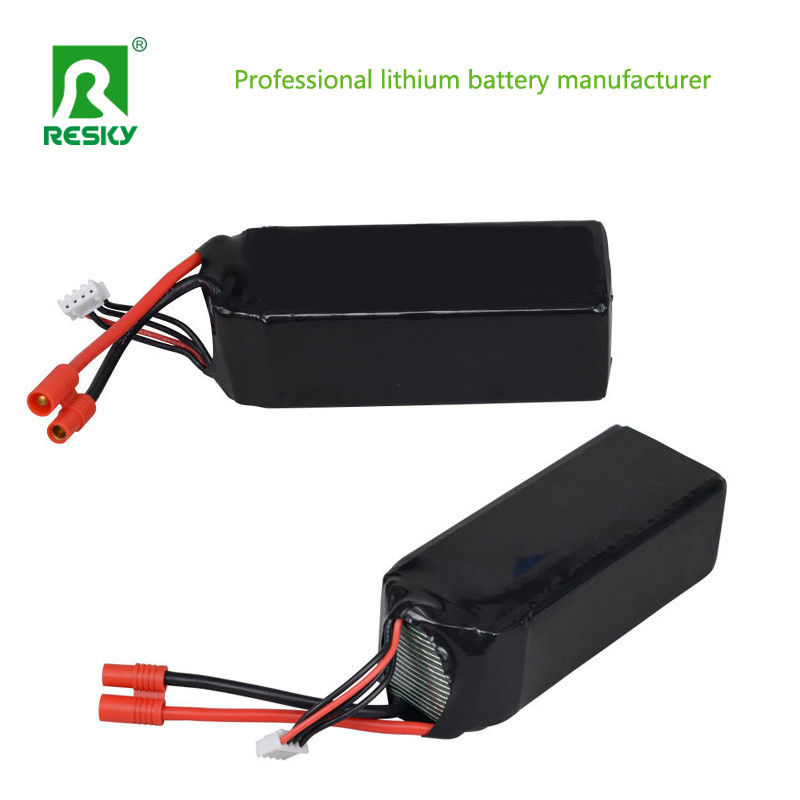

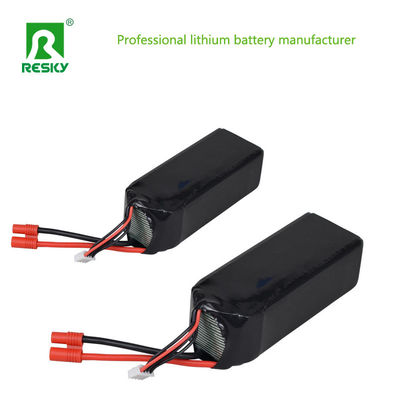

Product Images
