14.8V 2600mAh RC Lithium Battery 30c 4s RC Lithium Polymer Batteries

Brand Name:	RESKY
Model Number:	LP9034102SH30
MOQ:	10pcs
Price:	Negotiable
Packaging Details:	Standard export package
Payment Terms:	Western Union,T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE, RoHS, MSDS, Un38.3

Electrolyte:

Li(Nicomn)O2

Nominal Capacity:

2600mAh

Charging Current:

Max Discharging Current:

Weight:

Cycle Life:

500cycles

Warranty:

12months

Connector:

Xt60, Xt90, T-Type, Anderson, Bullet

OEM Service:

Specification:

29*34*102mm

Supply Ability:

5000pcs/day

Highlight:

2600mAh RC Lithium Battery

4s RC Lithium Polymer Batteries

14.8V RC Lithium Battery

Product Description

14.8V 2600mAh RC Lithium Battery 30c 4s RC Lithium Polymer Batteries

Product Specifications

NO.	Items	Specifications
1	Batteries	14.8V 2600mAh lipo battery
2	Charge voltage	16.8V
3	Nominal voltage	11V
4	Nominal capacity	2600mAh 30C Discharge
5	Charge current	Standard Charging: 0.2C Rapid charge: 30C
6	Standard Charging method	0.5C CC(constant current) charge to 16.8V, then CV(constant voltage 16.8V) charge till charge current declines to ≤0.05C
7	Charging time	Standard Charging: 2.75 hours (Ref.) Rapid charge: 2 hours (Ref.)
8	Max. charge current	0.5C
9	Max. discharge current	30.0C
10	Discharge cut-off voltage	8.25V (0.2C)
11	Operating temperature	Charging: 0°C ~45°C Discharging: 0°C ~45°C
12	Storage temperature	-10°C~ +45°C
13	Dimension	Length: 102±0.5mm (not including tabs) Width: 34±0.5mm Thickness: 29±0.2mm
14	Drop Test	The cell is to be dropped from a height of meter twice onto concrete ground. No fire, no leakage
15	Cycle time	≥800 times

Advantages of Lithium Polymer Battery for RC Products

High Discharge Rates: Supports high power output needed for acceleration and high-speed maneuvers in RC applications.
Improved Safety: Solid or gel-like electrolyte reduces risks of leakage or fire if damaged.
Lightweight: Reduces overall weight of RC products, improving performance and maneuverability.
Low Self-Discharge: Retains charge longer during storage periods, ideal for intermittent RC use.

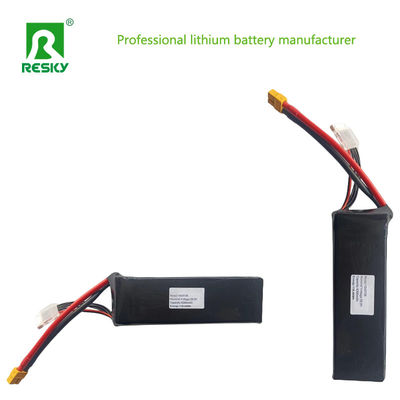

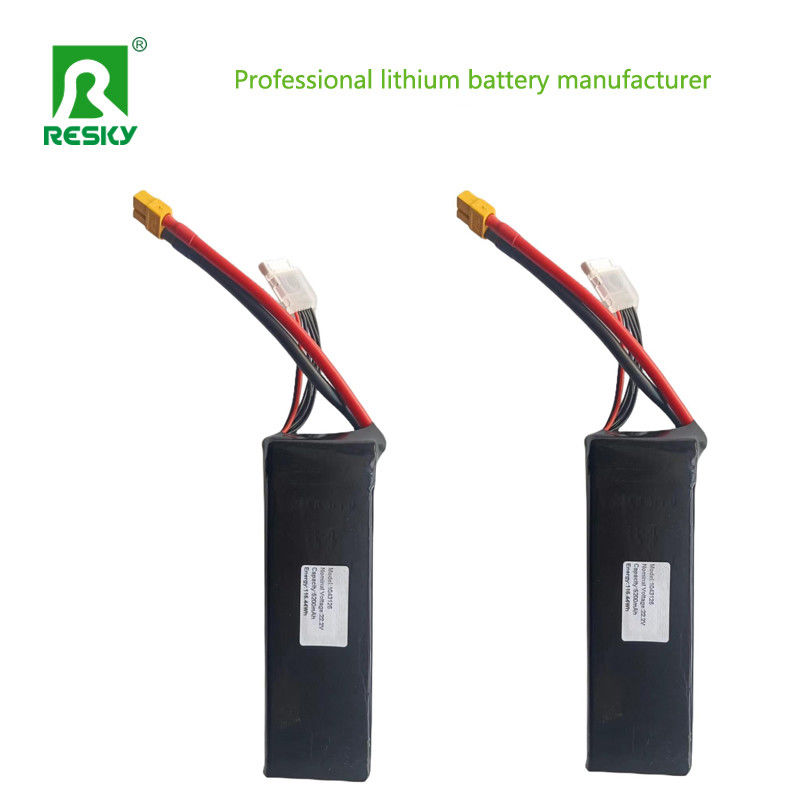

Product Images
