Helicopter Drone RC Lipo Battery Pack 853460 7.4V 1500mAh 25c Li Polymer Battery

Brand Name:	RESKY
Model Number:	LP853460SH25
MOQ:	10PCS
Price:	Negotiable
Packaging Details:	Standard export package
Payment Terms:	Western Union,T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE, RoHS, MSDS, Un38.3

Nominal Capacity:

1500mAh

Charging Current:

Max Discharging Current:

Cycle Life:

500cycles

Warranty:

12months

Connector:

Xt60, Xt90, T-Type, Anderson, Bullet

Free Sample:

Available

OEM Service:

Specification:

8.5*34*60mm

HS Code:

8507600090

Supply Ability:

5000pcs/day

Highlight:

RC Lipo Battery Pack 853460

Drone RC Lipo Battery Pack

25c Li Polymer Battery

Product Description

Helicopter Drone RC Lipo Battery Pack 853460 7.4V 1500mAh 25c Li Polymer Battery

Product Specifications

NO.	Items	Specifications
1	Batteries	7.4V 1500mAh LiPo battery
2	Charge voltage	7.4V
3	Nominal voltage	5.5V
4	Nominal capacity	1500mAh 20C Discharge
5	Charge current	Standard Charging: 0.2C Rapid charge: 25C
6	Standard Charging method	0.5C CC(constant current) charge to 8.4V, then CV(constant voltage 8.4V) charge till charge current declines to ≤0.05C
7	Charging time	Standard Charging: 2.75 hours (Ref.) Rapid charge: 2 hours (Ref.)
8	Max. charge current	0.5C
9	Max. discharge current	40.0C
10	Discharge cut-off voltage	5.5V(0.2C)
11	Operating temperature	Charging: 0°C ~45°C Discharging: 0°C ~45°C
12	Storage temperature	-10°C~ +45°C
13	Dimension	Length: 48±0.5mm (not including tabs) Width: 30±0.5mm Thickness: 8±0.2mm
14	Drop Test	The cell is to be dropped from a height of meter twice onto concrete ground. No fire, no leakage
15	Cycle time	≥800 times

Advantages of Lithium Polymer Battery Packs for RC Products

Lightweight and Compact

Lithium polymer batteries are significantly lighter than nickel-cadmium and nickel-metal hydride batteries, improving the agility and speed of RC devices. Their flexible form factor allows for efficient space utilization in RC models, enabling more compact designs.

Customizable Designs

These batteries can be shaped and sized to perfectly match your RC vehicle, whether it's a long, slim pack for racing cars or a cubic design for drones, meeting specific dimensional requirements.

Quick Charge Times

With faster charge times compared to other battery types, lithium polymer batteries minimize downtime between flights or races, allowing for more continuous operation.

Safety and Reliability

Equipped with advanced protection circuits including overcharge, overdischarge, and short-circuit protection, these batteries ensure safe operation. Their good chemical stability provides reliable power when properly maintained.

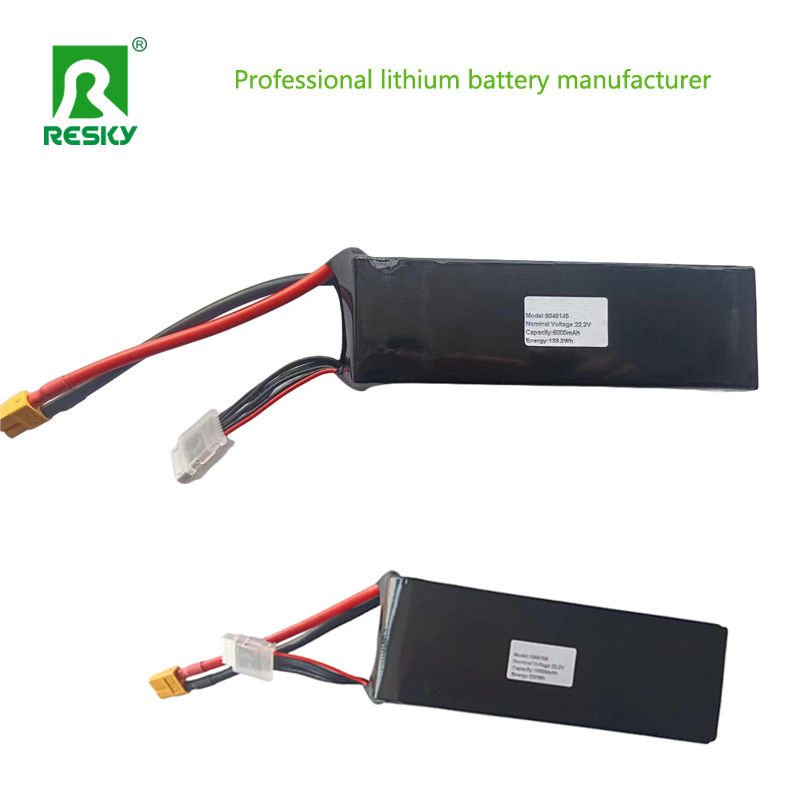

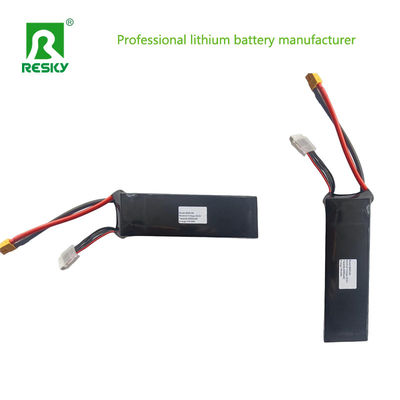

Product Images
