Uav RC Lithium Ion Battery 7545135 30c 4200mAh 22.2V Power

Brand Name: RESKY
Model Number: LP7545135SH30
MOQ: 10pcs
Price: Negotiable
Packaging Details: Standard export package
Payment Terms: Western Union,T/T
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
CE, RoHS, MSDS, Un38.3
Electrolyte:
Li(Nicomn)O2
Nominal Capacity:
4200mAh
Charging Current:
1c
Max Discharging Current:
30c
Weight:
136g
Cycle Life:
500cycles
Connector:
Xt60, Xt90, T-Type, Anderson, Bullet
OEM Service:
Yes
Specification:
7.5*45*135mm
HS Code:
8507600090
Supply Ability:
5000pcs/day
Highlight:

Uav RC Lithium Ion Battery

,

RC Lithium Ion Battery 7545135

,

30c RC Lithium Ion Battery

Product Description
UAV RC Lithium Ion Battery 7545135 30C 4200mAh 22.2V Power
Product Specifications
NO. Items Specifications
1 Batteries 22.2V 4200mAh LiPo battery
2 Charge voltage 25.2V
3 Nominal voltage 22.2V
4 Nominal capacity 4200mAh 30C Discharge
5 Charge current Standard Charging: 0.2C
Rapid charge: 30C
6 Standard Charging method 0.5C CC(constant current) charge to 25.2V, then CV(constant voltage 25.2V) charge till charge current declines to ≤0.05C
7 Charging time Standard Charging: 2.75 hours (Ref.)
Rapid charge: 2 hours (Ref.)
8 Max. charge current 0.5C
9 Max. discharge current 30.0C
10 Discharge cut-off voltage 2.5V±0.25V (0.2C)
11 Operating temperature Charging: 0°C ~45°C
Discharging: 0°C ~45°C
12 Storage temperature -10°C ~ +45°C
13 Dimension Length: 135±0.5mm (not including tabs)
Width: 45±0.5mm
Thickness: 7.5±0.2mm
14 Drop Test The cell is to be dropped from a height of meter twice onto concrete ground. No fire, no leakage
15 Cycle time ≥800 times
Charging Instructions
  1. Use the Right Charger
    • Always use a charger specifically designed for Li-Po batteries with appropriate voltage and current settings
    • The charger should have balance-charging function to ensure even charging of all cells
    • Verify charger compatibility with battery voltage (22.2V) and capacity (4200mAh)
  2. Set the Correct Charging Parameters
    • Set charging current according to battery capacity (standard 0.2C, rapid 30C)
    • Set voltage limit to 25.2V for this 6S battery
  3. Charge in a Safe Environment
    • Use non-flammable charging surface
    • Ensure proper ventilation
    • Never leave battery unattended during charging
  4. Check the Battery Before Charging
    • Inspect for physical damage or swelling
    • Ensure connectors are clean and free of debris

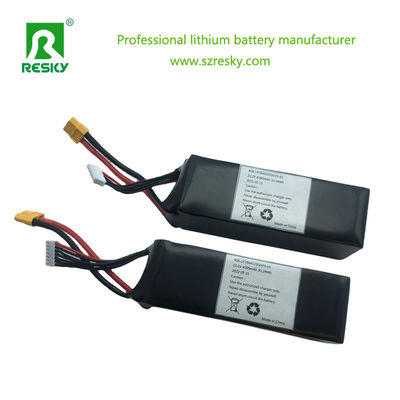

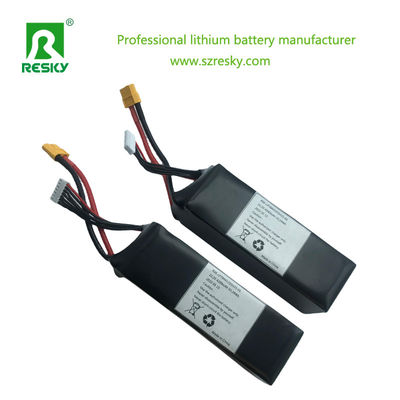

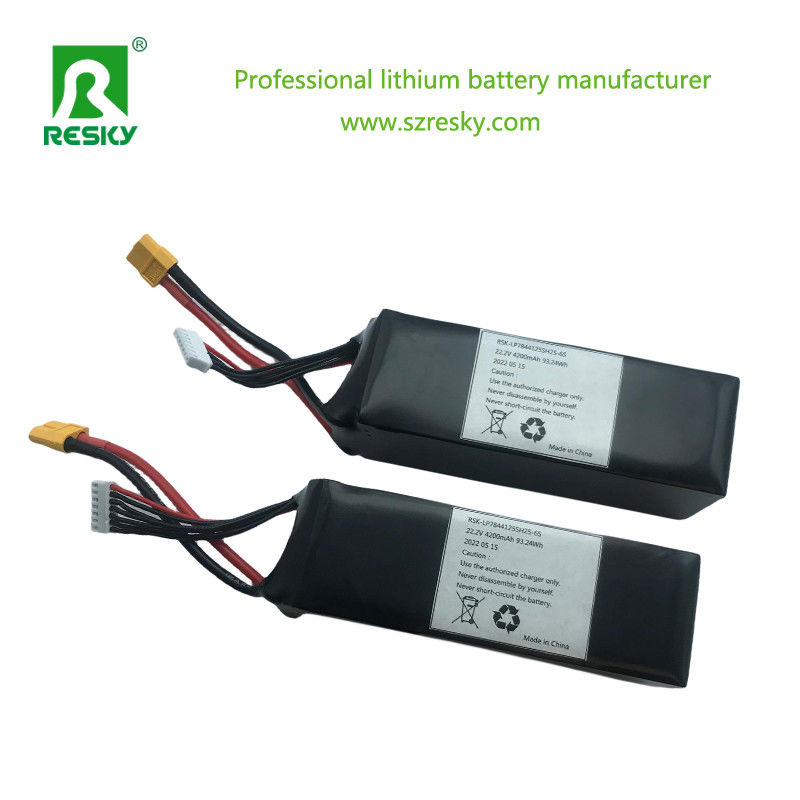

Product Images
Uav RC Lithium Ion Battery 7545135 30c 4200mAh 22.2V Power 0 Uav RC Lithium Ion Battery 7545135 30c 4200mAh 22.2V Power 1 Uav RC Lithium Ion Battery 7545135 30c 4200mAh 22.2V Power 2 Uav RC Lithium Ion Battery 7545135 30c 4200mAh 22.2V Power 3 Uav RC Lithium Ion Battery 7545135 30c 4200mAh 22.2V Power 4
