Prismatic Lipo Battery Pack 803043 803040 1000mAh 3.7V 7.4V 7.4wh

Brand Name: RESKY
Model Number: LP803043
MOQ: 10pcs
Price: Negotiable
Packaging Details: Paper box
Payment Terms: Western Union,T/T
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
CE, RoHS, MSDS, Un38.3
Nominal Capacity:
1000mAh
Weight:
10g
Cycle Life:
500cycles
Warranty:
1year
Shipping:
UPS, DHL, FedEx, TNT, By Air, By Sea, Special Line
Connector:
Jst, Molex....
OEM Service:
Yes
Specification:
8*30*40mm
HS Code:
8507600090
Supply Ability:
100000PCS/Day
Supply Ability:
50000pcs/day
Highlight:

Prismatic Lipo Battery Pack

,

Lipo Battery Pack 803043

,

1000mAh Lipo Battery Pack

Product Description
Prismatic Lipo Battery Pack 803043 803040 1000mAh 3.7V 7.4V 7.4wh
Product Specifications
NO. Items Specifications
1 Batteries 3.7v 1000mah lipo battery
2 Charge voltage 4.2V
3 Nominal voltage 3.7V
4 Nominal capacity 1000mAh 0.2C Discharge
5 Charge current Standard Charging: 0.5C
Rapid charge: 1.0C
6 Standard Charging method 0.5C CC(constant current) charge to 4.2V, then CV(constant voltage 4.2V) charge till charge current decline to ≤0.05C
7 Charging time Standard Charging: 2.75hours(Ref.)
Rapid charge: 2hours(Ref.)
8 Max.charge current 1.0C
9 Max.discharge current 1.0C
10 Discharge cut-off voltage 2.5V±0.25V(0.2C)
11 Operating temperature Charging: 0°C ~45°C
Discharging: 0°C ~45°C
12 Storage temperature -10°C~ +45°C
13 Dimension Length: 40±2mm (not including tabs)
Width: 30±0.5mm
Thickness: 8±0.2mm
14 Drop Test The cell is to be dropped from a height of meter twice onto concrete ground. No fire, no leakage
15 Cycle time ≥500times
LiPo Battery Safety Guidelines
Regular Monitoring and Maintenance
  • Periodically check the battery's charge level, especially if stored for several months. Recharge if the battery's charge has significantly dropped to prevent over-discharge.
  • Avoid storing batteries for long periods at full or completely depleted charge levels, as overcharging and over-discharging can adversely affect the battery's performance and lifespan.
Education and Training
  • Provide users with comprehensive information on LiPo battery safety, including proper usage, maintenance, and storage practices.
  • Encourage users to read and follow the battery manufacturer's instructions and safety warnings.
  • Offer training sessions or workshops on LiPo battery safety for users, especially those who work with batteries in professional settings.

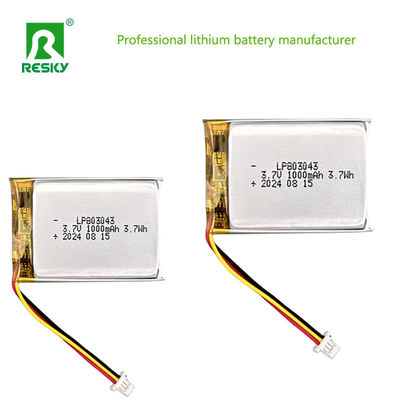

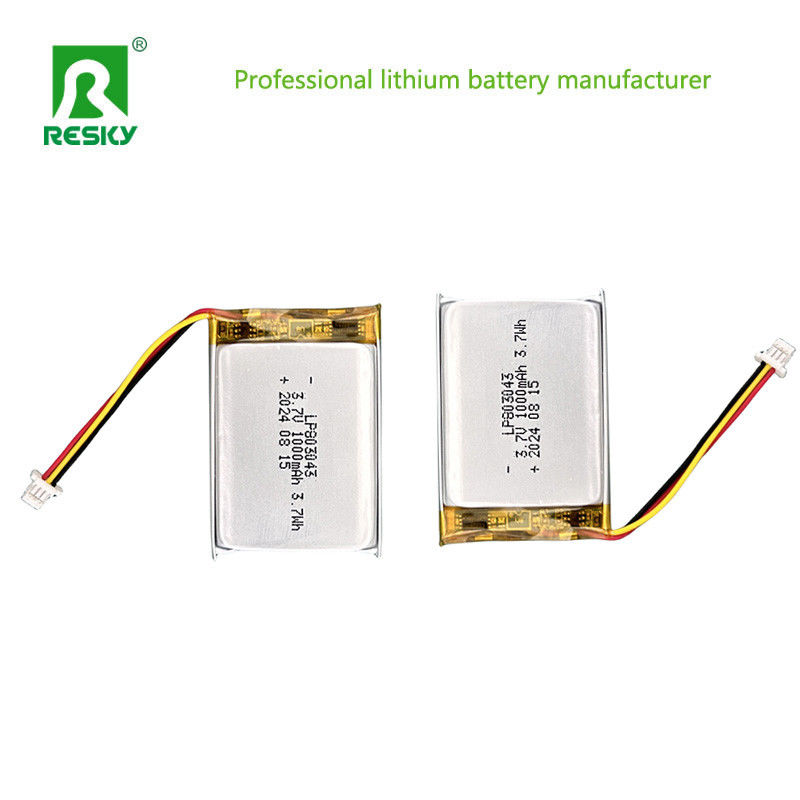

Product Images
Prismatic Lipo Battery Pack 803043 803040 1000mAh 3.7V 7.4V 7.4wh 0 Prismatic Lipo Battery Pack 803043 803040 1000mAh 3.7V 7.4V 7.4wh 1 Prismatic Lipo Battery Pack 803043 803040 1000mAh 3.7V 7.4V 7.4wh 2 Prismatic Lipo Battery Pack 803043 803040 1000mAh 3.7V 7.4V 7.4wh 3 Prismatic Lipo Battery Pack 803043 803040 1000mAh 3.7V 7.4V 7.4wh 4
