Lithium Polymer Battery Pack

Solar Lithium Polymer Battery Cell 103765 3.7V 7.4V 3000mAh 11.1wh With Jst Connector

All Category

RC Accessories

Mrs. Alice

alice@szresky.com

0086 13530058480

Contact Now

Solar Lithium Polymer Battery Cell 103765 3.7V 7.4V 3000mAh 11.1wh With Jst Connector

Brand Name:	RESKY
Model Number:	LP103765
MOQ:	10pcs
Price:	Negotiable
Packaging Details:	Paper box
Payment Terms:	T/T,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE, RoHS, MSDS, Un38.3

Nominal Capacity:

3000mAh

Charging Current:

Max Discharging Current:

Weight:

Cycle Life:

500cycles

Shipping:

UPS, DHL, FedEx, TNT, By Air, By Sea, Special Line

Connector:

Jst, Molex....

Color:

Blue PVC

Specification:

10*37*65mm

Trademark:

Supply Ability:

50000pcs/day

Highlight:

Lithium Polymer Battery Cell 103765

Jst Connector Lithium Polymer Battery

3000mAh Lithium Polymer Battery Cell

Product Description

Product Description

Solar Lithium Polymer Battery Pack 103765 3.7V 7.4V 3000mAh 11.1wh With Jst Connector

NO.	Items	Specifications
1	batteries	3.7v 3000mah lipo battery
2	Charge voltage	4.2V
3	Nominal voltage	3.7V
4	Nominal capacity	3000mAh 0.2C Discharge
5	Charge current	Standard Charging:0.5C Rapid charge: 1.0C
6	Standard Charging method	0.5C CC(constant current)charge to 4.2V, then CV(constant voltage 4.2V)charge till charge current decline to ≤0.05C
7	Charging time	Standard Charging:2.75hours(Ref.) Rapid charge: 2hours(Ref.)
8	Max.charge current	0.5C
9	Max.discharge current	0.5C
10	Discharge cut-off voltage	2.5V0.25V(0.2C)
11	Operating temperature	Charging: 0 °C ~45 °C Discharging:0 °C ~45 °C
12	Storage temperature	-10°C~ +45 °C
13	Dimension	Length:65±2mm (not including tabs) Width:37±0.5mm Thickness:10±0.2mm
14	Drop Test	The cell is to be dropped from a height of meter twice onto concrete ground. No fire, no leakage
15	cycle time	≥500times

How to Ensure the Safety of Lipo Batteries:

Battery Design and Manufacturing

Electrolyte Improvement:

The main heat release during lithium-ion battery fires comes from the combustion of flammable organic electrolytes. Research is ongoing to develop electrolytes with better thermal stability and lower flammability.
Soft solvent lithium-ion batteries, for instance, have been designed to enhance safety and performance under extreme conditions.

Cell Structure:

Ensure robust cell structure to prevent internal shorts and leaks.
Use high-quality materials for cell casing and separators.

Maintaining Appropriate Voltage and Charge Level

Charge Level: Long-term storage with full or depleted charge levels can damage the battery's overall performance. Ideally, maintain LiPo batteries at around 50% charge to preserve their stability and extend their lifespan.
Regular Cycling: Periodically use the batteries to perform charge and discharge cycles, and ensure proper storage conditions to mitigate potential performance decline over time.

Fire and Heat Prevention

Keep Away from Fire Sources: LiPo batteries are highly flammable. Storing them in areas prone to fire hazards or near high-temperature heat sources increases the risk of fire. Ensure that LiPo batteries are kept away from flammable materials, open flames, or extreme heat sources.
Ventilation: Adequate ventilation in the storage area helps disperse any gases that may accumulate due to battery aging or failure. Good air circulation reduces the risk of gas accumulation and minimizes potential hazards associated with LiPo batteries.

Picures:

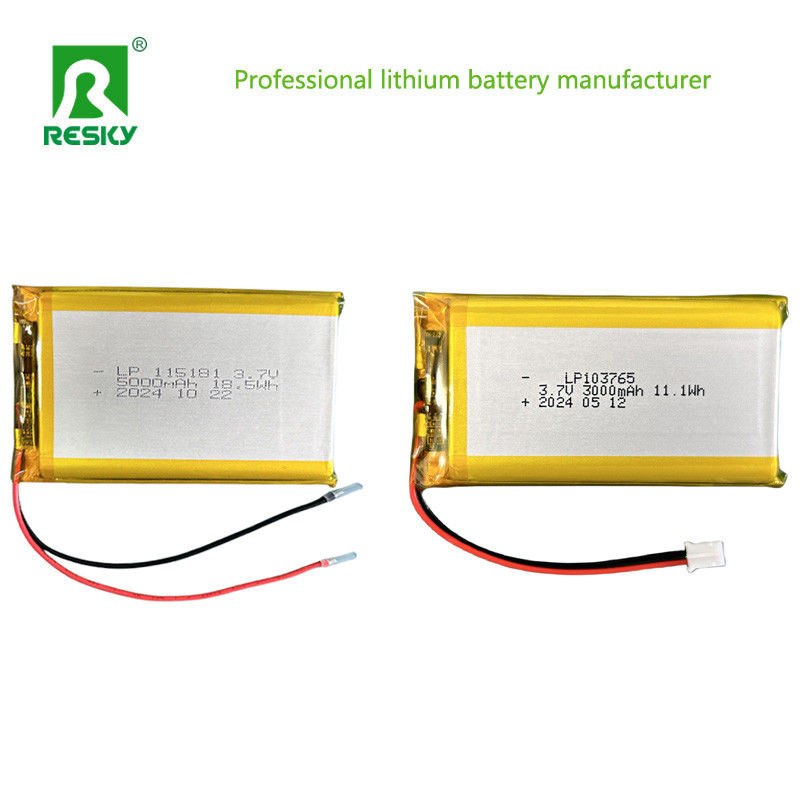

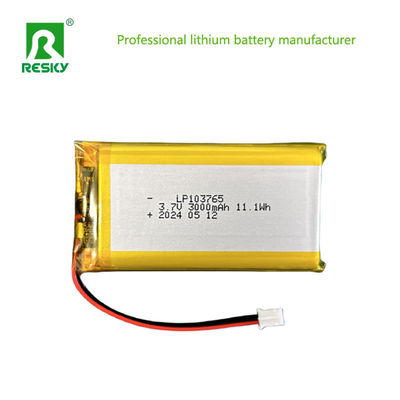

Solar Lithium Polymer Battery Cell 103765 3.7V 7.4V 3000mAh 11.1wh With Jst Connector 0

Solar Lithium Polymer Battery Cell 103765 3.7V 7.4V 3000mAh 11.1wh With Jst Connector 1

Solar Lithium Polymer Battery Cell 103765 3.7V 7.4V 3000mAh 11.1wh With Jst Connector 2

Solar Lithium Polymer Battery Cell 103765 3.7V 7.4V 3000mAh 11.1wh With Jst Connector 3

Solar Lithium Polymer Battery Cell 103765 3.7V 7.4V 3000mAh 11.1wh With Jst Connector 4
