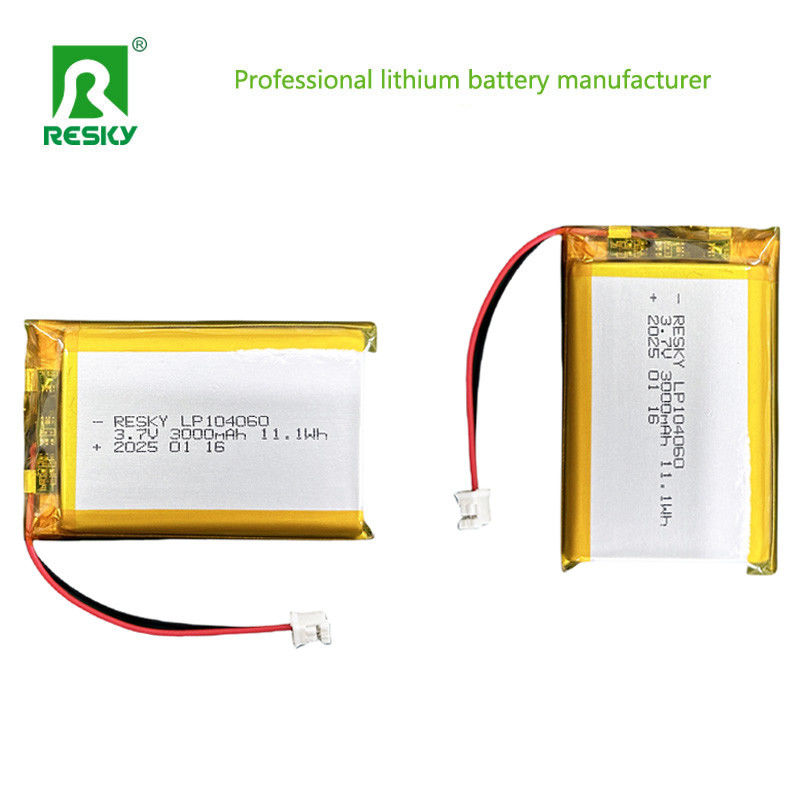

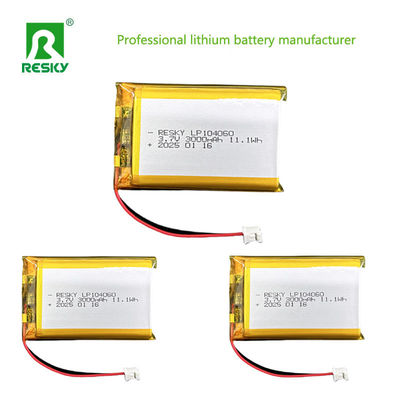

500 Cycles Lipo Battery Pack 104060 3000mAh 33.3wh 3.7V 11.1V

Brand Name: RESKY
Model Number: LP104060
MOQ: 100pcs
Price: Negotiable
Packaging Details: Paper box
Payment Terms: Western Union,T/T
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
CE, RoHS, MSDS, Un38.3
Document:
LP104060 30000mAh with PCB ...24.pdf
Nominal Capacity:
3000mAh
Continuous Discharging Current:
0.5c
Max Discharging Current:
1c
Weight:
30g
Cycle Life:
500cycles
Warranty:
12months
Customize Service:
Yes
Specification:
10*40*60mm
HS Code:
8507600090
Supply Ability:
100000PCS/Day
Supply Ability:
50000pcs/day
Highlight:

500 Cycles Lipo Battery Pack

,

Lipo Battery Pack 104060

,

3000mAh Lipo Battery Pack

Product Description
500 Cycles Lipo Battery Pack 104060 3000mAh 33.3wh 3.7V 11.1V
Product Attributes
Nominal Capacity 3000mAh
Continuous Discharging Current 0.5c
Max Discharging Current 1c
Weight 30g
Cycle Life 500cycles
Warranty 12months
Customize Service Yes
Specification 10*40*60mm
HS Code 8507600090
Supply Ability 100000PCS/Day
Product Specifications
Batteries 3.7V 3000mAh LiPo battery
Charge voltage 4.2V
Nominal voltage 3.7V
Nominal capacity 3000mAh @ 0.2C Discharge
Charge current Standard: 0.5C
Rapid charge: 1.0C
Standard Charging method 0.5C CC charge to 4.2V, then CV charge till current ≤0.05C
Charging time Standard: 2.75 hours
Rapid: 2 hours
Max. charge current 1.0C
Max. discharge current 1.0C
Discharge cut-off voltage 2.5V±0.25V (0.2C)
Operating temperature Charging: 0°C ~45°C
Discharging: 0°C ~45°C
Storage temperature -10°C ~ +45°C
Dimension Length: 60±2mm
Width: 40±0.5mm
Thickness: 10±0.2mm
Drop Test 1m drop onto concrete twice - No fire, no leakage
Cycle time ≥500 times
Manufacturing Process
Cathode Preparation
  • Material Selection: Lithium-containing compounds (LiCoO₂, LiMn₂O₄, or LiFePO₄) chosen for energy density, power output, and safety
  • Mixing: Cathode material combined with conductive agents and binder to form slurry
  • Coating: Slurry uniformly coated onto aluminum foil, dried, and calendared for consistent density
Anode Preparation
  • Material Selection: Graphite for lithium ion intercalation
  • Mixing and Coating: Anode material slurry coated onto copper foil substrate
Electrolyte Preparation
  • Composition: Lithium-salt solution in organic solvent (LiPF₆ in EC/DMC/EMC)
  • Mixing and Purification: Components mixed in controlled environment, filtered for purity
Assembly
  • Separator Insertion: Microporous polymer film between electrodes
  • Stacking or Winding: Electrode-separator structure formed into cell core
  • Cell Encapsulation: Core sealed in flexible polymer pouch with moisture barrier
Formation and Initial Charging
  • Formation: Initial charge-discharge cycles to activate materials and form SEI layer
  • Initial Conditioning: Controlled charging/discharging to optimize performance
Quality Testing and Inspection
  • Electrical Testing: Capacity, internal resistance, and voltage characteristics
  • Safety Testing: Overcharge, over-discharge, short-circuit, and thermal tests
  • Visual Inspection: Physical defects and dimensional accuracy checks
