3.7V Lithium Polymer Battery Pack 104050 104060 3000mAh Lithium Ion Batteries

Brand Name: RESKY
Model Number: LP104060
MOQ: 100pcs
Price: Negotiable
Packaging Details: Standard export
Payment Terms: Western Union,T/T
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
CE, RoHS, MSDS, Un38.3
Document:
LP104060 30000mAh with PCB ...24.pdf
Nominal Capacity:
3000mAh
Charging Current:
0.2c
Continuous Discharging Current:
0.5c
Max Discharging Current:
1c
Weight:
30g
Warranty:
12months
OEM Service:
Yes
Specification:
10*40*60mm
HS Code:
8507600090
Working Voltage:
4.2V
Supply Ability:
50000pcs/day
Highlight:

3.7V Lithium Polymer Battery Pack

,

Lithium Polymer Battery Pack 104050

,

3000mAh Lithium Ion Batteries

Product Description
3.7V Lithium Polymer Battery Pack 104050 104060 3000mAh Lithium Ion Batteries
Product Specifications
Nominal Capacity 3000mAh
Charging Current 0.2c
Continuous Discharging Current 0.5c
Max Discharging Current 1c
Weight 30g
Warranty 12 months
OEM Service Yes
Specification 10×40×60mm
HS Code 8507600090
Working voltage 4.2V
Technical Details
1 Batteries 3.7V 3000mAh LiPo battery
2 Charge voltage 4.2V
3 Nominal voltage 3.7V
4 Nominal capacity 3000mAh @ 0.2C Discharge
5 Charge current Standard: 0.5C
Rapid: 1.0C
6 Standard Charging method 0.5C CC charge to 4.2V, then CV charge till current ≤0.05C
7 Charging time Standard: 2.75 hours
Rapid: 2 hours
8 Max. charge current 1.0C
9 Max. discharge current 1.0C
10 Discharge cut-off voltage 2.5V±0.25V (0.2C)
11 Operating temperature Charging: 0°C ~45°C
Discharging: 0°C ~45°C
12 Storage temperature -10°C ~ +45°C
13 Dimension Length: 60±2mm
Width: 40±0.5mm
Thickness: 10±0.2mm
14 Drop Test 1m drop onto concrete twice - No fire, no leakage
15 Cycle time ≥500 cycles
Manufacturing Process
1. Cathode Preparation
  • Material: Lithium compounds (LiCoO₂, LiMn₂O₄, or LiFePO₄) selected for performance characteristics
  • Mixing: Active material combined with conductive agents and PVDF binder in solvent slurry
  • Coating: Uniform slurry application on aluminum foil, dried and calendared for consistent density
2. Anode Preparation
  • Material: Graphite for lithium ion intercalation
  • Process: Mixed with binder and conductive additive, coated on copper foil, then calendared
3. Electrolyte Preparation
  • Composition: Lithium salt (LiPF₆) in organic solvent mixture (EC, DMC, EMC)
  • Processing: Mixed in controlled environment, filtered for purity with moisture control
4. Assembly
  • Separator: Microporous polymer film between electrodes
  • Stacking/Winding: Electrode-separator structure formed into cell core
  • Encapsulation: Flexible polymer pouch sealed against moisture and air
5. Formation and Initial Charging
  • Formation: Controlled charge-discharge cycles to activate materials and form SEI layer
  • Conditioning: Optimizes electrochemical performance through parameter-controlled cycling
6. Quality Testing and Inspection
  • Electrical Testing: Capacity, internal resistance, and voltage characteristics
  • Safety Testing: Overcharge, discharge, short-circuit, and thermal stability evaluations
  • Visual Inspection: Physical defect checking and dimensional verification
Product Images

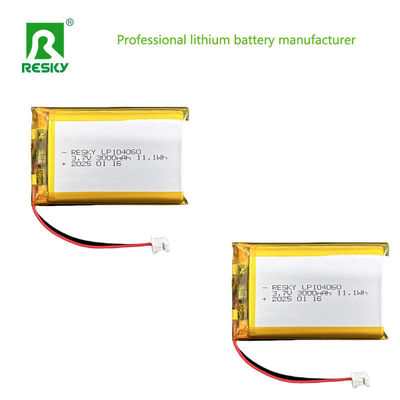

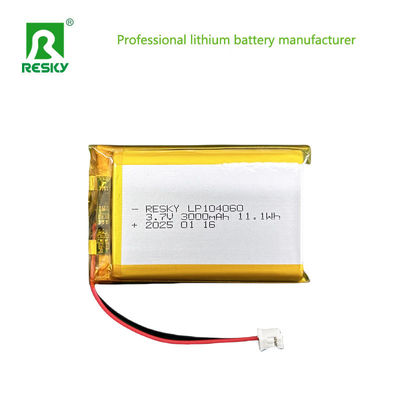

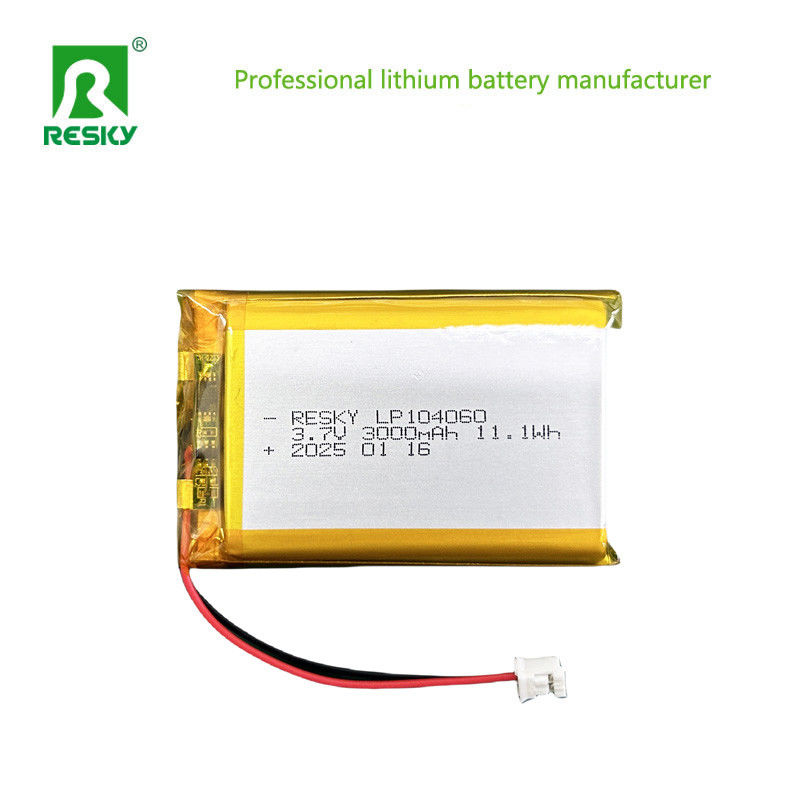

3.7V Lithium Polymer Battery Pack 104050 104060 3000mAh Lithium Ion Batteries 0
3.7V Lithium Polymer Battery Pack 104050 104060 3000mAh Lithium Ion Batteries 1
3.7V Lithium Polymer Battery Pack 104050 104060 3000mAh Lithium Ion Batteries 2
3.7V Lithium Polymer Battery Pack 104050 104060 3000mAh Lithium Ion Batteries 3
3.7V Lithium Polymer Battery Pack 104050 104060 3000mAh Lithium Ion Batteries 4
