Lithium Polymer Battery Pack

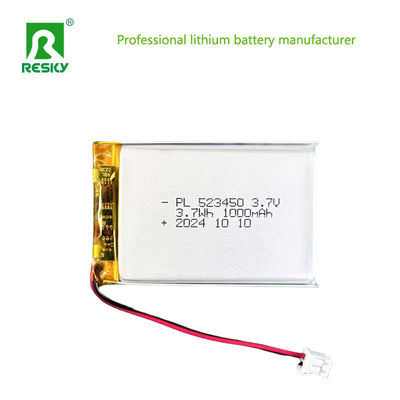

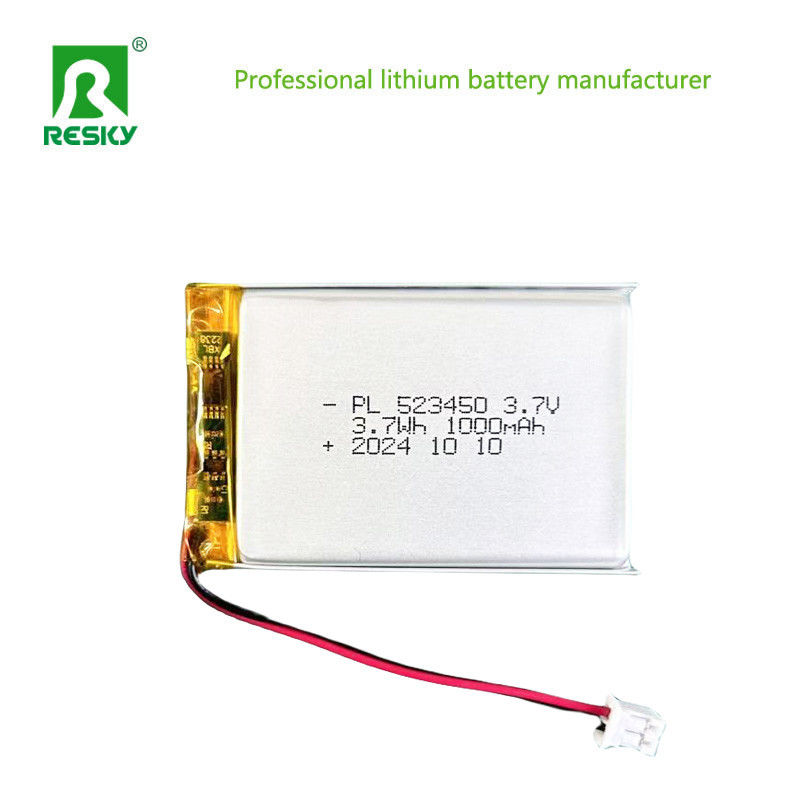

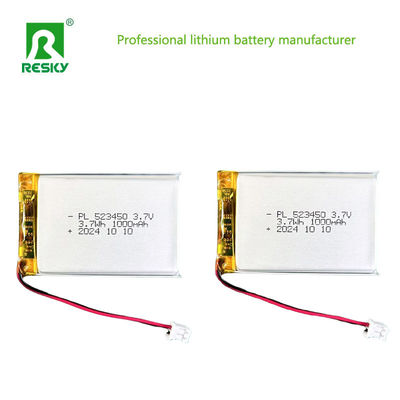

Lithium Polymer Battery Cell 523450 603450 3.7V 1000mAh 3.7wh Rechargealbe Lipo Battery Pack

All Category

Lithium Polymer Battery Cell

RC Lithium Battery

Li-Ion Battery Pack

Lithium Polymer Battery Pack

Heated Lithium Battery

Electric Bike Battery

RC Balance Charger

Rechargeable Battery Charger

RC Accessories

Mrs. Alice

alice@szresky.com

0086 13530058480

0086 13530058480

Contact Now

Lithium Polymer Battery Cell 523450 603450 3.7V 1000mAh 3.7wh Rechargealbe Lipo Battery Pack

Brand Name:	RESKY
Model Number:	LP523450
MOQ:	10pcs
Price:	Negotiable
Packaging Details:	Paper box
Payment Terms:	Western Union,T/T

Detail Information

Product Description

Ratings & Reviews

Detail Information

Place of Origin:

China

Certification:

CE, RoHS, MSDS, Un38.3

Document:

LP553450 1100mAh with PCB s...21.pdf

Shape:

Square Battery

Electrolyte:

Li(Nicomn)O2

Rechargeable:

Chargeable

Nominal Capacity:

1000mAh

Weight:

Connector:

Jst, Molex....

Color:

Blue PVC

Specification:

5.2*34*50mm

HS Code:

8507600090

Supply Ability:

100000PCS/Day

Supply Ability:

50000pcs/day

Highlight:

Cylindrical Lipo Battery Cells

Lipo Battery Cells 523450

Lipo Battery Cells 1000mAh

Product Description

Cylindrical Lipo Battery Cells 523450 603450 3.7V 7.4v 1000mAh

Product Attributes

Attribute	Value
Shape	Square Battery
Electrolyte	Li(Nicomn)O2
Rechargeable	Chargeable
Nominal Capacity	1000mAh
Weight	9g
Connector	Jst, Molex....
Color	Blue PVC
Specification	5.23450mm
HS Code	8507600090
Supply Ability	100000PCS/Day

Product Description

Lithium polymer battery pack 523450 603450 3.7V 7.4v 1000mAh Power lipo batteries

NO.	Items	Specifications
1	batteries	7.4v 1000mah lipo battery
2	Charge voltage	8.4V
3	Nominal voltage	7.4V
4	Nominal capacity	1000mAh 0.2C Discharge
5	Charge current	Standard Charging:0.5C Rapid charge: 1.0C
6	Standard Charging method	0.5C CC(constant current)charge to 8.4V, then CV(constant voltage 8.4V)charge till charge current decline to ≤0.05C
7	Charging time	Standard Charging:2.75hours(Ref.) Rapid charge: 2hours(Ref.)
8	Max.charge current	1.0C
9	Max.discharge current	1.0C
10	Discharge cut-off voltage	2.5V0.25V(0.2C)
11	Operating temperature	Charging: 0°C ~45°C Discharging:0°C ~45°C
12	Storage temperature	-10°C~ +45°C
13	Dimension	Length: 50±2mm (not including tabs) Width: 34±0.5mm Thickness:11±0.2mm
14	Drop Test	The cell is to be dropped from a height of meter twice onto concrete ground. No fire, no leakage
15	cycle time	≥500times

Difference Between Lithium Polymer Battery and Cylindrical Battery

Structure and Design:

Lithium Polymer Battery:

Shape and Flexibility: Can be designed in various shapes, such as prismatic or even custom shapes, due to their flexible electrolyte and packaging materials.
Electrolyte: Uses a gel-polymer electrolyte, which is a solidified liquid electrolyte embedded in a polymer matrix.

Cylindrical Battery:

Shape: Have a standard cylindrical shape with positive and negative terminals at the top and bottom, respectively.
Electrolyte: Typically use a liquid electrolyte.
