products details

Home > Products >

Heated Lithium Battery

2s1p Heated Lithium Battery 7.4V 2200mAh Li-ion Battery Pack For Heated Clothes

All Category

RC Accessories

Mrs. Alice

alice@szresky.com

0086 13530058480

Contact Now

2s1p Heated Lithium Battery 7.4V 2200mAh Li-ion Battery Pack For Heated Clothes

Brand Name:	RESKY
Model Number:	LP7.4-2200
MOQ:	10pcs
Price:	Negotiable
Packaging Details:	Paper box
Payment Terms:	Western Union,T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE,RoHS,MSDS,Un38.3

Rated Capacity:

2200mAh

Standard Voltage:

Electrolyte:

Li(Nicomn)O2

Cell:

Presmatic Cells

Connector:

DC1.35*3.5mm

Weight:

Color:

White, Black

Specification:

11.8mm*57mm*74mm

HS Code:

8507600090

Supply Ability:

20000pcs/day

Highlight:

2s1p Heated Lithium Battery

2200mAh Heated Lithium Battery

Heated Clothes Li-ion Battery Pack

Product Description

Product Description

Heated Lithium Battery 7.4V 2200mAh 2s1p Li-ion Battery Pack For Heated Clothes

Model	2S1P
Nominal voltage	7.4V
Nominal capacity	2200mAh
Size	11.8mm57mm74mm
Max charge current	0.5C
Charging method	Constant current 1C to 8.4V,then charge with constant voltage 8.4V till charge current less than 0.01C
Max discharge current	1C
Discharge cut-off voltage	6V, the over-discharge detection voltage of PCM
Operating environment	Charging, 0°C ~ 45°C ; 65±20%RH; Discharging, -20°C~60°C ; 65±20%RH
Storage environment	-20°C~45°; 65±20%RH;
Lifespan (80% Prime Capacity)	>500times
Charging Attention	It is dangerous that charging with higher current or voltage than Product Specification may cause damage to the cell electrical, mechanical safety performance.

Advantages:

Improved Performance in Cold Environments:

Heated battery packs can maintain optimal operating temperatures, even in cold conditions. This ensures that the batteries perform at their best, delivering high energy density and power output.

By preventing the batteries from freezing, heated packs extend the usable range of electric vehicles in cold climates.

Extended Battery Life:

Maintaining a consistent temperature can reduce wear and tear on battery components, leading to a longer overall lifespan.

Heated battery packs may also help to mitigate the formation of lithium dendrites, which can cause internal shorts and reduce battery performance over time.

Faster Charging Rates:

In cold weather, batteries can charge more slowly due to the increased internal resistance. Heated battery packs can reduce this resistance, allowing for faster charging rates.

This is particularly beneficial for electric vehicle owners who need to quickly recharge their vehicles during short stops.

Enhanced Safety:

Heated battery packs can help to maintain a more uniform temperature distribution within the battery pack, reducing the risk of thermal runaway and fire.

By monitoring and controlling the temperature, heated packs provide an additional layer of safety for lithium-ion batteries.

Improved Efficiency:

Operating at optimal temperatures can improve the energy conversion efficiency of lithium-ion batteries. This means that more of the stored energy can be used to power the vehicle, reducing energy waste.

Pictures:

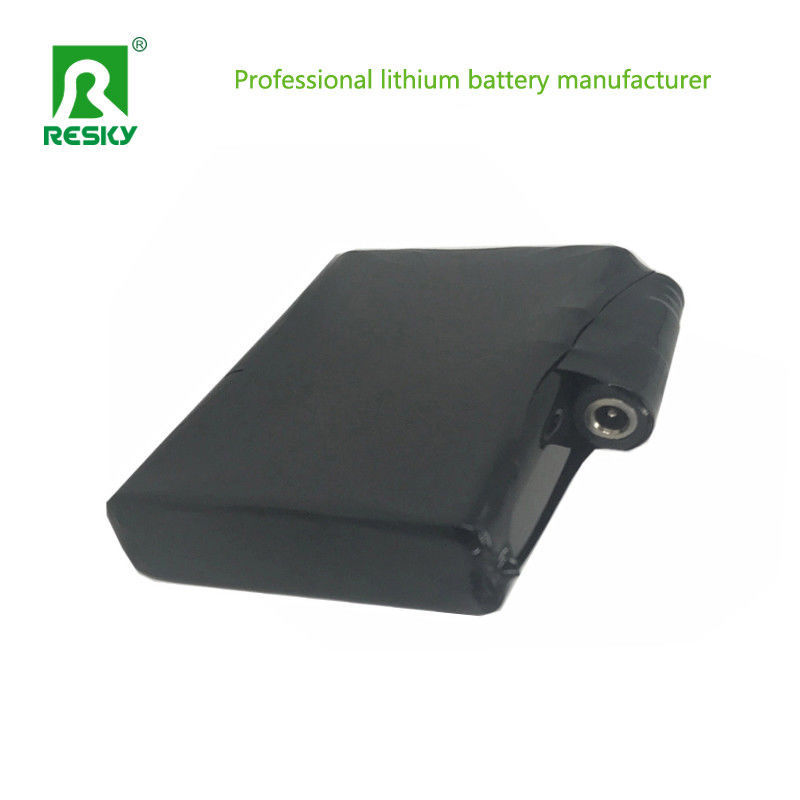

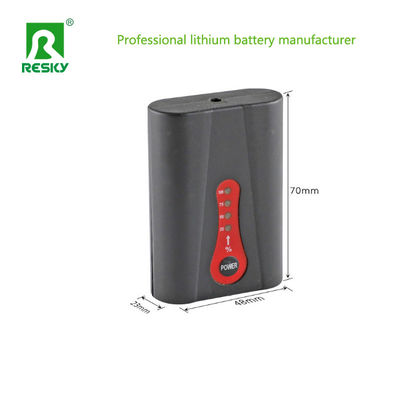

2s1p Heated Lithium Battery 7.4V 2200mAh Li-ion Battery Pack For Heated Clothes 0

2s1p Heated Lithium Battery 7.4V 2200mAh Li-ion Battery Pack For Heated Clothes 1

2s1p Heated Lithium Battery 7.4V 2200mAh Li-ion Battery Pack For Heated Clothes 2

2s1p Heated Lithium Battery 7.4V 2200mAh Li-ion Battery Pack For Heated Clothes 3

2s1p Heated Lithium Battery 7.4V 2200mAh Li-ion Battery Pack For Heated Clothes 4

Tags:
