853496 RC Lipo Battery Cell 7.4V 11.1V 2200mAh 25c Lithium Polymer Batteries

Brand Name:	RESKY
Model Number:	LP853496SH25
MOQ:	100pcs
Price:	Negotiable
Packaging Details:	Standard export package
Payment Terms:	T/T,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE, RoHS, MSDS, Un38.3

Nominal Capacity:

2600mAh

Continuous Discharging Current:

Peak Discharging Current:

Cycle Life:

500cycles

Warranty:

12months

Weight:

Connector:

Xt60, Xt90, T-Type, Anderson, Bullet

OEM Service:

Specification:

8.5*34*96mm

HS Code:

8507600090

Supply Ability:

Negotiable

Highlight:

853496 RC Lipo Battery Cell

RC Lipo Battery Cell 7.4V

25c Lithium Polymer Batteries

Product Description

853496 RC Lipo Battery Cell 7.4V 11.1V 2200mAh 25c Lithium Polymer Batteries

Product Specifications

NO.	Items	Specifications
1	Batteries	3.7V 2600mah lipo battery
2	Charge voltage	4.2V
3	Nominal voltage	2.75V
4	Nominal capacity	2600mAh 35C Discharge
5	Charge current	Standard Charging: 0.5C Rapid charge: 1C
6	Standard Charging method	0.5C CC(constant current)charge to 4.2V, then CV(constant voltage 4.2V)charge till charge current decline to ≤0.05C
7	Charging time	Standard Charging: 2.75hours(Ref.) Rapid charge: 2hours(Ref.)
8	Max.charge current	0.5C
9	Max.discharge current	70.0C
10	Discharge cut-off voltage	2.75V(0.2C)
11	Operating temperature	Charging: 0°C ~45°C Discharging: 0°C ~45°C
12	Storage temperature	-10°C~ +45°C
13	Dimension	Length: 96±2mm (not including tabs) Width: 34±0.5mm Thickness: 8.5±0.2mm
14	Drop Test	The cell is to be dropped from a height of meter twice onto concrete ground. No fire, no leakage
15	Cycle time	≥500times

Advantages of Lithium Polymer Batteries for RC Products

High Energy Density

Lithium polymer batteries offer a high energy density, meaning they can store significant energy in a compact and lightweight package. This is ideal for RC products with limited space and weight capacity.

Shape Flexibility

Unlike traditional lithium-ion batteries, lithium polymer batteries can be manufactured in various shapes and sizes, allowing custom fits for specific RC product requirements.

Long Cycle Life

These batteries can be charged and discharged multiple times without significant performance degradation, reducing the need for frequent replacements.

High Discharge Rates

Lithium polymer batteries support high discharge rates, providing the burst of power needed for RC applications like acceleration and high-speed maneuvers.

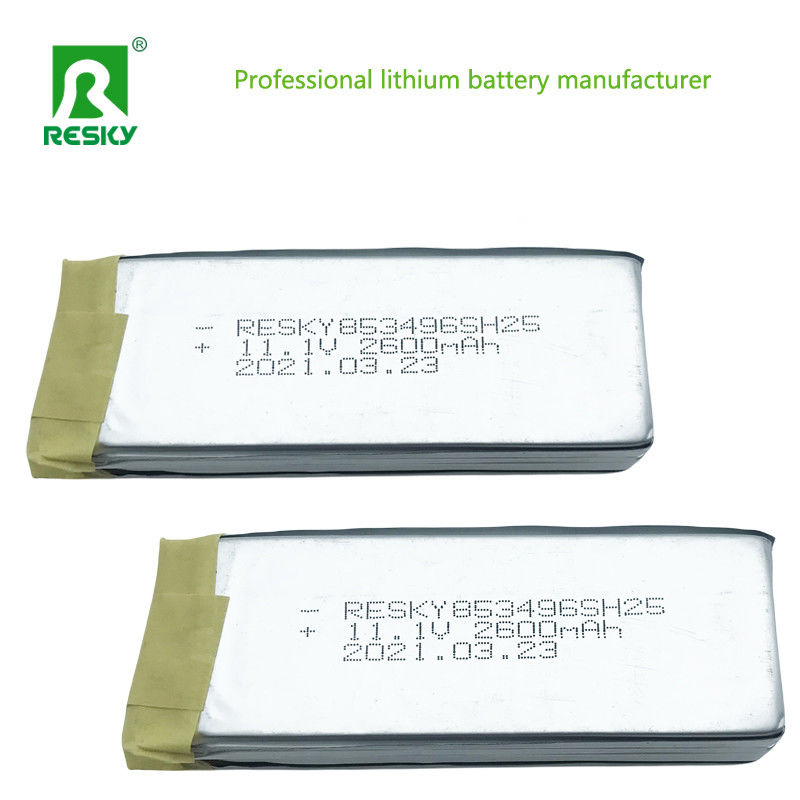

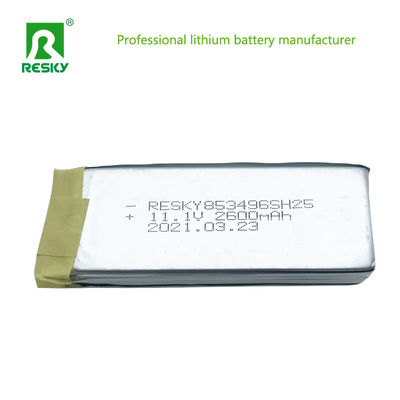

Product Images
