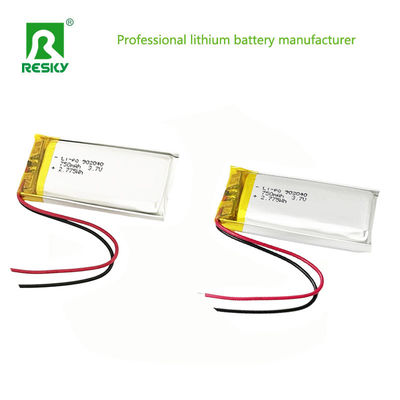

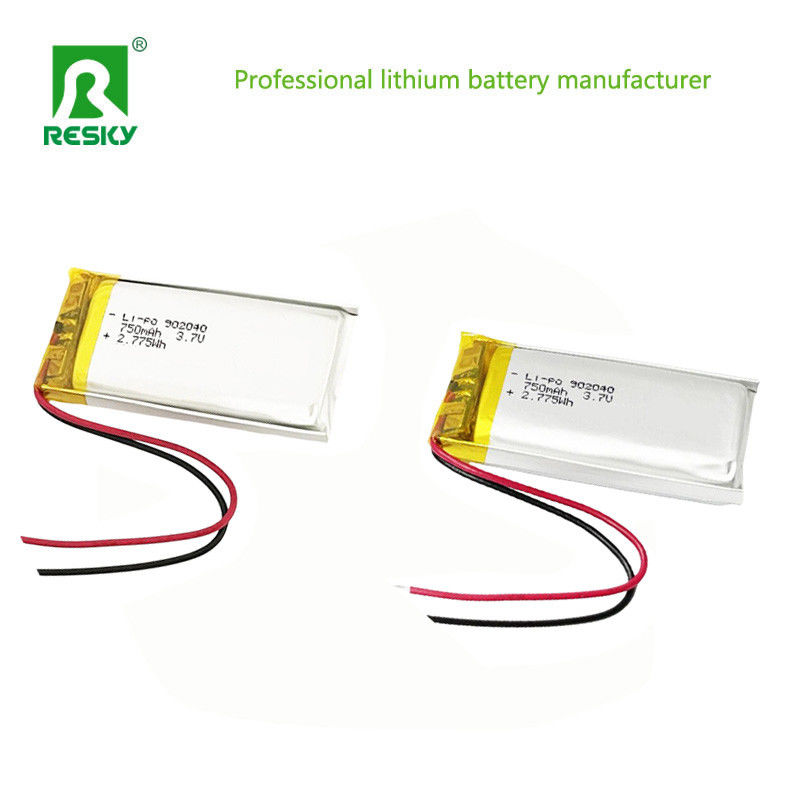

750mAh 3.7V Lithium Polymer Battery Cell 9x20x40mm

All Category

Lithium Polymer Battery Cell

RC Lithium Battery

Li-Ion Battery Pack

Lithium Polymer Battery Pack

Heated Lithium Battery

Electric Bike Battery

RC Balance Charger

Rechargeable Battery Charger

RC Accessories

Mrs. Alice

alice@szresky.com

0086 13530058480

0086 13530058480

Contact Now

750mAh 3.7V Lithium Polymer Battery Cell 9x20x40mm

Brand Name:	RESKY
Model Number:	LP902040
MOQ:	100pcs
Price:	Negotiable
Packaging Details:	Standard export package
Payment Terms:	T/T,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE, RoHS, MSDS, Un38.3

Document:

Nominal Capacity:

750mAh

Charging Current:

Continuous Discharging Current:

Max Discharging Current:

Weight:

Cycle Life:

500cycles

Warranty:

12months

Shipping:

UPS, DHL, FedEx, TNT, By Air, By Sea, Special Line

Specification:

9*20*40mm

HS Code:

8507600090

Supply Ability:

50000pcs/day

Highlight:

Lithium Polymer Battery Cell 602040

Lithium Polymer Battery Cell 702040

102040 Lipo Batteries

Product Description

Lithium Polymer Battery Cell 602040 702040 802040 902040 102040 Lipo Batteries

Product Specifications

Attribute	Value
Nominal Capacity	750mAh
Charging Current	0.2c
Continuous Discharging Current	0.5c
Max Discharging Current	1c
Weight	11g
Cycle Life	500cycles
Warranty	12months
Shipping	UPS, DHL, FedEx, TNT, by Air, by Sea, Special Line
Specification	92040mm
HS Code	8507600090

Technical Details

NO.	Items	Specifications
1	Batteries	3.7v 750mah lipo battery
2	Charge voltage	4.2V
3	Nominal voltage	3.7V
4	Nominal capacity	750mAh 0.2C Discharge
5	Charge current	Standard Charging:0.5C Rapid charge: 1.0C
6	Standard Charging method	0.5C CC(constant current)charge to 4.2V, then CV(constant voltage 4.2V)charge till charge current decline to ≤0.05C
7	Charging time	Standard Charging:2.75hours(Ref.) Rapid charge: 2hours(Ref.)
8	Max.charge current	1.0C
9	Max.discharge current	1.0C
10	Discharge cut-off voltage	2.75V(0.2C)
11	Operating temperature	Charging: 0°C ~45°C Discharging:0°C ~45°C
12	Storage temperature	-10°C~ +45°C
13	Dimension	Length: 40±2mm (not including tabs) Width: 20±0.5mm Thickness:9±0.2mm
14	Drop Test	The cell is to be dropped from a height of meter twice onto concrete ground. No fire, no leakage
15	Cycle time	≥500times

Comparison: Lithium Battery vs LiFePO4 Battery

Cycle Life and Longevity

Lithium-ion Batteries: The cycle life can vary depending on chemistry and manufacturing process, with some types experiencing gradual capacity decline over cycles.
LiFePO4 Batteries: Known for long cycle life and high durability, maintaining high capacity over many charge-discharge cycles.

Cost

Cost varies by production scale, raw material prices, and demand.
LiFePO4 batteries may have higher initial cost but offer longer cycle life and lower maintenance requirements.

Application Areas

Lithium-ion Batteries: Widely used in portable electronics, electric vehicles, and energy storage systems due to high energy density.
LiFePO4 Batteries: Preferred for safety-critical applications like electric buses, marine uses, renewable energy storage, UPS systems, and emergency lighting.

Product Images
